56mm OD Planetary Gearbox.Permissible Load Range: 3N.m~30N.m
Wire Diagram
No | Color | Type | Functions | Description |
1 | YEL | UL1332 AWG18 | Phase U | |
2 | RED | Phase V | ||
3 | BLK | Phase W | ||
4 | BLK |
UL1332 AWG26 | GND | Hall ground |
5 | RED | Vcc | Hall power source DC(+4.5V～18VDC) | |
6 | BLU | Hall A | ||
7 | GRN | Hall B | ||
8 | WHT | Hall C |
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Rated power W | Reak torque mN.m | Peak current A | Line to line resistance ohms | Line to line inductance mH |
FL60BLW42-24V-37110A | 14 | 3 | 24 | 4300 | 3700 | 290 | 112 | 870 | 18 | 0.25 | 0.3 |
Brushless Gear Motor Technical Data
FL60BLW42-24V-37110A BLDC Motor
Reduction ratio | 3.60 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 |
Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
Length(L) mm | 37.8 | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 71.9 | 71.9 |
No-load speed r/min | 1194 | 1012 | 807 | 331 | 287 | 239 | 187 | 154 | 100 | 83 | 70 | 60 | 45 | 36 | 28 | 23 |
Rated speed r/min | 1028 | 871 | 684 | 285 | 247 | 206 | 161 | 132 | 86 | 71 | 61 | 51 | 39 | 31 | 24 | 20 |
Rated torque N.m | 0.94 | 1.1 | 1.3 | 3.1 | 3.5 | 4.2 | 5.4 | 6.6 | 9.1 | 11 | 13 | 15 | 20 | 23 | 29 | 30 |
N.m Max. permissible load in a short time | 9 | 9 | 9 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 |

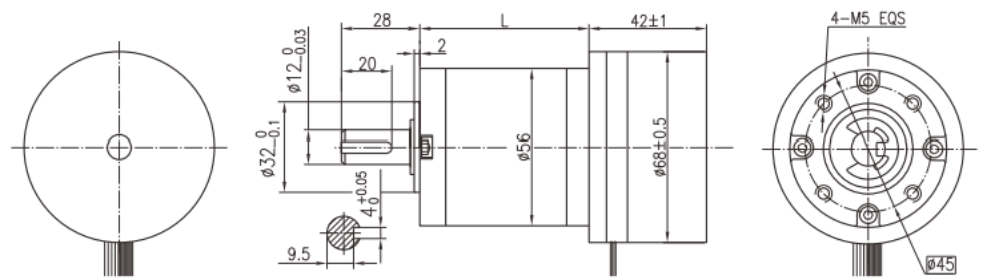

Dimensions
The outer rotor motor gets its name because the rotor is on the outside,
and it is characterized by small size (short length), light weight,and large output torque.
