60mm Integrated Gearbox.Permissible Load Range: 5.0N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque N.m | stall current A |
52ZY125- 2420 | 24 | 2000 | 0.4 | 1600 | 160 | 30 | 2.0 | 0.62 | 6.5 |
52ZY125- 2430 | 24 | 3000 | 0.6 | 2400 | 190 | 50 | 3.5 | 0.70 | 11.5 |
Gear motor Technical Data
52ZY125-2420 DC Motor
Reduction ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 |
Number of gear trains | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 |
Length(L) mm | 32 | 32 | 32 | 32 | 32 | 32 | 40 | 40 | 40 |
No-load speed r/min | 667 | 400 | 267 | 200 | 160 | 133 | 80 | 67 | 40 |
Rated speed r/min | 533 | 320 | 213 | 160 | 128 | 106 | 64 | 53 | 32 |
Rated torqueN.m | 0.38 | 0.64 | 0.97 | 1.2 | 1.6 | 1.9 | 3.2 | 3.8 | 5.0 |
N.m Max. permissible load in a short time | 5 | 5 | 5 | 5 | 15 | 15 | 15 | 15 | 15 |
Direction of rotation | CW | CW | CW | CW | CW | CW | CCW | CCW | CCW |
52ZY125-2430 DC Motor
Reduction ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 |
Number of gear trains | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 |
Length(L) mm | 32 | 32 | 32 | 32 | 32 | 32 | 40 | 40 | 40 |
No-load speed r/min | 1000 | 600 | 400 | 300 | 240 | 200 | 120 | 100 | 60 |
Rated speed r/min | 800 | 480 | 320 | 240 | 192 | 160 | 96 | 80 | 48 |
Rated torgue N.m | 0.46 | 0.76 | 1.1 | 1.5 | 1.9 | 2.3 | 3.1 | 3.7 | 5.0 |
N.m Max. permissible load in a short time | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 5.0 | 5.0 | 5.0 |
Direction of rotation | CW | CW | CW | CW | CW | CW | CCW | CCW | CCW |

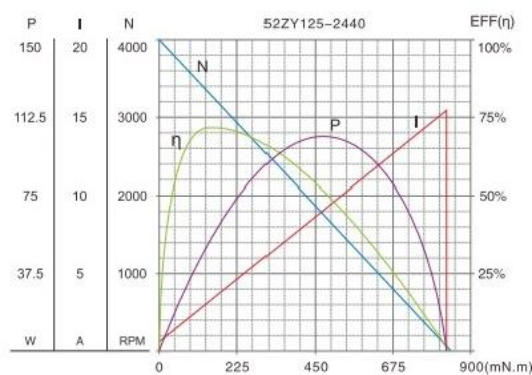

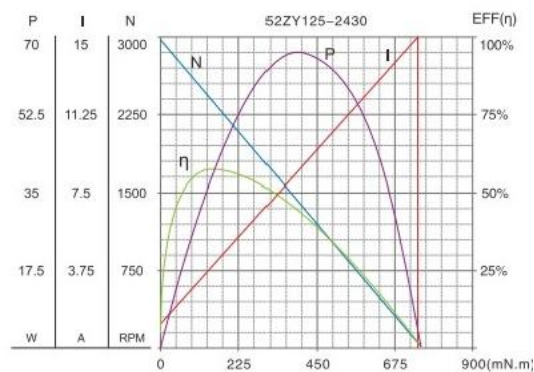

Motor Characteristic Figure

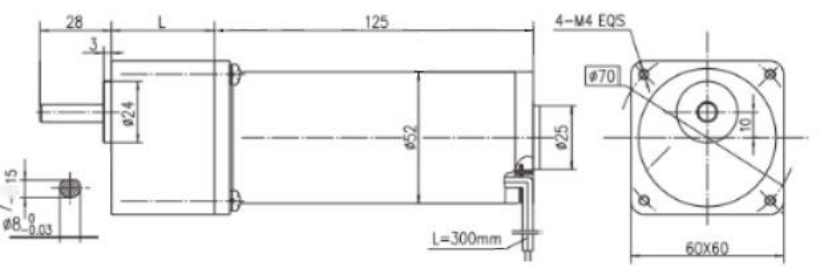

Dimensions
Long-lived Gearboxes,Alloy structural steel gears,all using rolling bearings.
