42mm OD Planetary Gearbox.Permissible Load Range: 3N.m~10N.m
Planetary Gearbox
Ring material | Metal |
Bearing at output | Ball bearings |
Max. Radial load(10mm from flange) | 100N |
Max. shaft axial load | 50N |
Radial play of shaft(nearto flange) | ≤0.07 mm |
Axial play of shaft | ≤0.3 mm |
42STH Hybrid Stepping Motor Specifications
Model No. | Rated Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Rotor Inertia | Weight | Length L1 | Max, Gear Ratio |
Single Shaft | V | A | Q | mH | kg.cm | g.m² | kg | mm | ||
42STH33-1334A | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 35 | 0.22 | 34 | ≤1:118 |
42STH38- 1684A | 2.8 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 54 | 0.28 | 40 | ≤1:91 |
A-Single Shaft, B-Double shaft.
Planetary Gearbox Specifications
Reduction ratio | 3.82 | 4.88 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 | 271 | 346 | ||
Number of gear trains | 1 | 2 | 3 | 4 | ||||||||||
Length(L2) mm | 36.9 | 47.4 | 57.7 | 68.0 | ||||||||||
Max. rated torque | kg.cm | 30 | 50 | 100 | 100 | |||||||||
Short time permissible torque | kg.cm | 90 | 150 | 300 | 300 | |||||||||
Efficiency % | 90% | 81% | 73% | 66% | ||||||||||
Backlash at no-load | 0.5° | 1.0° | 1.5° | 1.5° | ||||||||||
W e i g h t g | 229 | 300 | 371 | 442 | ||||||||||

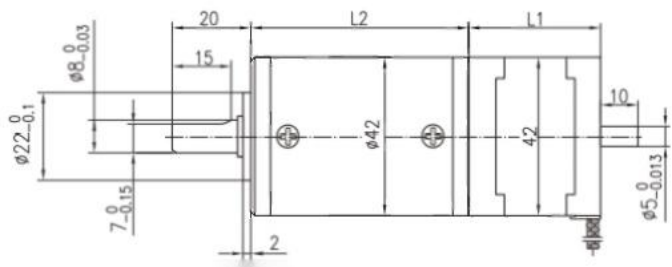

Dimensions

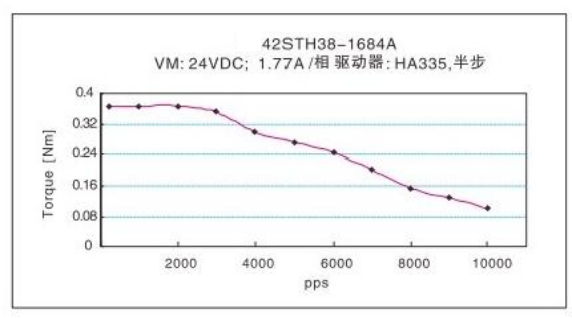

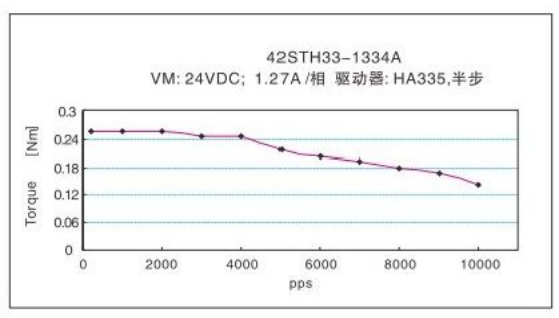

Frequency-torque characteristics
Gearbox 42JMGS100K:42mm OD Precision Planetary gearbox, Permissible Load Rnge:100kg.cm
Long-lived Gearboxes, output stage planetary gear with needle bearing, The code name 'G' is used in the model.
