3 Phase DC Brushless Motor 130 Series 130mm*130mm frame
Winding type:Star
Hall effect angle:120 degree electrical angle
Shaft run out:0.025mm
Radial play:0.02mm@450g
End play:0.08mm@450g
Max. radial force:900N @ 20mm from the flange
Max.axial force:300N
Insulation class:Class B
Dielectric strength:1500VDC for one minute
Insulation resistance:100MΩMin.,500VDC
Electrical Specifications | ||||||||||
Series Model | Rated power | Rated voltage | Rated current | Numder of poles | Rated speed | Rated torque | Peak torque | Torque constant | Length | Weight |
W | VDC | A | rpm | N.m | N.m | N.m/A | mm | Kg | ||
130BL3A130-625 | 1255 | 310 | 5 | 8 | 2000 | 6 | 18 | 1.2 | 146 | 5.5 |
130BL3A145-625 | 1675 | 310 | 6.8 | 8 | 2000 | 8 | 24 | 1.2 | 162 | 7 |
130BL3A160-625 | 2092 | 310 | 8.5 | 8 | 2000 | 10 | 30 | 1.2 | 178 | 9.5 |
130BL3A180-625 | 2510 | 310 | 10 | 8 | 2000 | 12 | 36 | 1.2 | 194 | 11 |

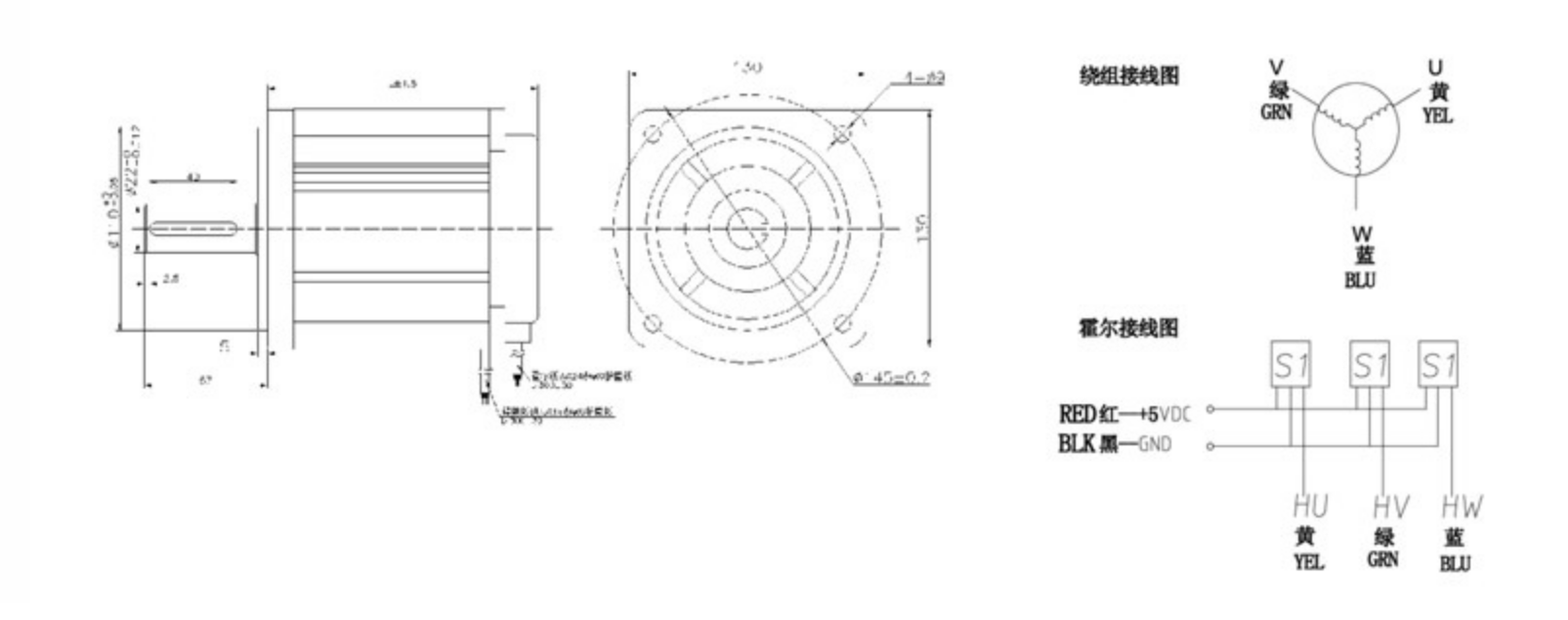

Dimensions
*We can customize products according to customer requirements
