110 series brushless motor
3 Phase DC Brushless Motor 110 Series 110mm*110mm frame

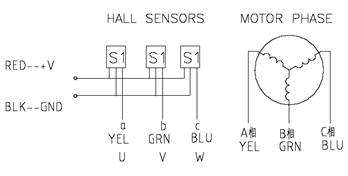

Winding type:Star
Hall effect angle:120 degree electrical angle
Shaft run out:0.025mm
Radial play:0.02mm@450g
End play:0.08mm@450g
Max. radial force:600N @ 20mm from the flange
Max.axial force:180N
Insulation class:Class B
Dielectric strength:1500VDC for one minute
Insulation resistance:100MΩMin.,500VDC
Electrical Specifications | ||||||||||
Series Model | Rated power | Rated voltage | Rated current | Numder of poles | Rated speed | Rated torque | Peak torque | Torque constant | Length | Weight |
W | VDC | A | rpm | N.m | N.m | N.m/A | mm | Kg | ||
110BLM3A140-625 | 836 | 310 | 3.5 | 8 | 2000 | 4 | 12 | 1.15 | 155 | 4.5 |
110BLM3A165-625 | 1255 | 310 | 5 | 8 | 2000 | 6 | 18 | 1.15 | 180 | 5.5 |
110BLM3A180-625 | 1673 | 310 | 7.0 | 8 | 2000 | 8 | 24 | 1.15 | 198 | 6.5 |

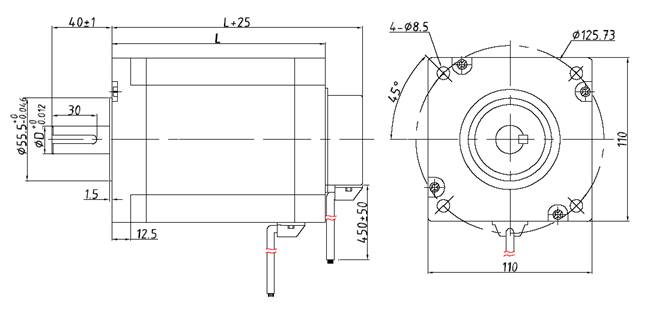

Dimensions
*We can customize products according to customer requirements
