38mm Planetary Gearbox.Permissible Load Range: 0.8N.m~8.0N
Motor Technical Data
TYPE | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
36ZY57PG- 1271 | 12 | 7100 | 350 | 6100 | 40 | 25.5 | 2.8 | 198 | 14 |
36ZY57PG-2471 | 24 | 7100 | 190 | 6200 | 40 | 25.9 | 1.4 | 197 | 7.3 |
Gear Motor Technical Data
36ZY57PG-1272 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 | 426 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 33.0 | 33.0 | 41.4 | 41.4 | 41.4 | 49.8 | 49.8 | 49.8 | 49.8 | 60.2 | 60.2 | 60.2 | 60.2 | 60.2 | 60.2 |
No-load speed r/min | 1914 | 1371 | 507 | 374 | 263 | 139 | 100 | 71 | 51 | 39 | 33 | 26 | 23 | 20 | 17 |
Rated speed r/min | 1644 | 1178 | 436 | 327 | 226 | 120 | 86 | 61 | 44 | 34 | 28 | 24 | 20 | 17 | 14 |
Rated torque N.m | 0.13 | 0.19 | 0.45 | 0.62 | 0.87 | 1.5 | 2.1 | 2.9 | 4.1 | 4.7 | 5.7 | 6.6 | 7.9 | 8 | 8 |
N.m Max. permissible load in a short time | 2.4 | 2.4 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 20 | 20 |
36ZY57PG-2472 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 | 426 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 33.0 | 33.0 | 41.4 | 41.4 | 41.4 | 49.8 | 49.8 | 49.8 | 49.8 | 60.2 | 60.2 | 60.2 | 60.2 | 60.2 | 60.2 |
No-load speed r/min | 1914 | 1371 | 507 | 374 | 263 | 139 | 100 | 71 | 51 | 39 | 33 | 26 | 23 | 20 | 17 |
Rated speed r/min | 1671 | 1197 | 443 | 326 | 230 | 122 | 87 | 62 | 45 | 34 | 28 | 25 | 20 | 17 | 14 |
Rated torque N.m | 0.13 | 0.19 | 0.45 | 0.62 | 0.87 | 1.5 | 2.1 | 2.9 | 4.1 | 4.7 | 5.7 | 6.6 | 7.9 | 8 | 8 |
N.m Max. permissible load in a short time | 2.4 | 2.4 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 20 | 20 |

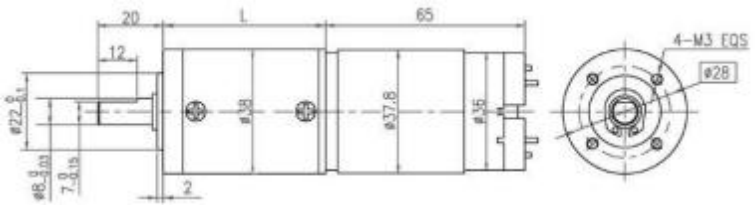

Dimensions
Motor Back Cover
36ZY57PG DC motor is high-end dc motor, big power, configuration inductance capacitance tamper-proof element, accord with the requirement of EMC.
