36JXL50K/36ZY57P

36mm OD Planetary Gearbox.Permissible Load Range: 0.5N.m~5.0N.m

Motor Technical Data

Type

Rated

vol tage

VDC

No-load

speed

r/min

No-load

current

Rated

speed

r/min

Rated

torque

mN.m

Output

power

Rated

current

Stall

torque

mN.m

Stall

current

36ZY57-2442

4200

120

3600

0.52

2.8

36ZY57P-

2460

6000

130

5000

13.5

0.8

2.4

12 V DC Optional, speed and torque is the same as 24V DC's.

Gear Motor Technical Data

36ZY57-2442 DC Motor

Reduction ratio	14	19	27	51	59	71	82	95	100	115	139	181	218	253	305	354
Number of gear trains	2	2	2	3	3	3	3	3	3	3	3	4	4	4	4	4
Length(L) mm	38.4	38.4	38.4	45.7	45.7	45.7	45.7	45.7	45.7	45.7	45.7	53.0	53.0	53.0	53.0	53.0
No-load speed r/min	300	221	156	82	71	59	51	44	42	37	30	23	19	17	14	12
Rated speed r/min	257	189	133	71	61	51	44	38	36	31	26	20	17	14	12	10
Rated torque N.m	0.22	0.29	0.42	0.71	0.82	0.98	1.1	1.3	1.4	1.6	1.9	2.2	2.7	3.1	3.8	4.4
N.m Max. permissible load in a short time	5	5	5	10	10	10	10	10	10	10	10	12	12	12	12	12

36ZY57P-2460 DC Motor

Reduction ratio	14	19	27	51	59	71	82	95	100	115	139	181	218	253	305	354
Number of gear trains	2	2	2	3	3	3	3	3	3	3	3	4	4	4	4	4
Length(L) mm	38.4	38.4	38.4	45.7	45.7	45.7	45.7	45.7	45.7	45.7	45.7	53.0	53.0	53.0	53.0	53.0
No-load speed r/min	429	316	222	118	102	85	73	63	60	52	43	33	28	24	20	17
Rated speed r/min	357	263	185	98	85	70	61	53	50	43	36	28	23	20	16	14
Rated torque N.m	0.29	0.40	0.57	0.97	1.1	1.3	1.6	1.8	1.9	2.2	2.6	3.1	3.7	4.3	5	5
N.m Max. permissible load in a short time	5	5	5	10	10	10	10	10	10	10	10	12	12	12	12	12

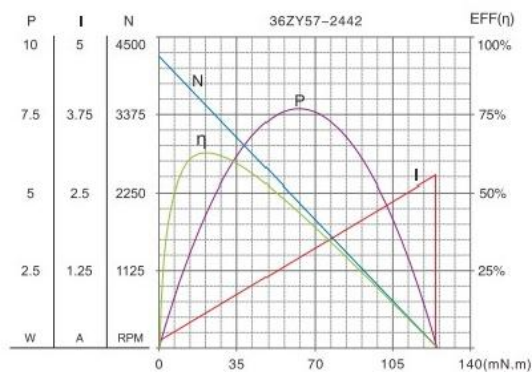

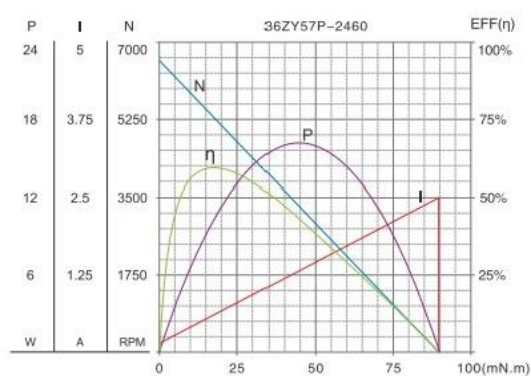

Motor Characteristic Figure

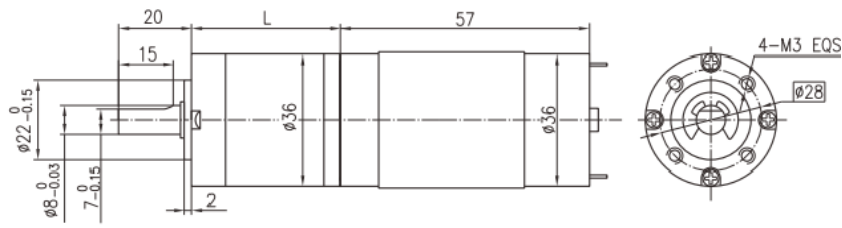

Dimensions

Low noise gearboxes, 1-Stage use helical gears, The code name 'L'is used in the model.
