80mm OD Planetary Gearbox.Permissible Load Range: 8N .m~80N .m
Wire Diagram
No | Pin | Type | Functions | Description |
1 | PIN3 |
MOLEX 39-28-1083 | Vcc | |
2 | PIN1 | Hall u | ||
3 | PIN2 | Hall v | ||
4 | PIN5 | Hall w | ||
5 | PIN6 | GND | ||
6 | PIN7 | Phase U | ||
7 | PIN8 | Phase V | ||
8 | PIN4 | Phase W |
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Rated power W | Reak torque N.m | Peak current A | Line to line resistance ohms | Line to line inductance mH |
FL90BLW27-24V-37130A | 22 | 3 | 24 | 3400 | 2700 | 457 | 130 | 1.6 | 23 | 0.21 | 0.19 |
FL90BLW40- 48V-16170A | 22 | 3 | 48 | 1950 | 1670 | 964 | 169 | 3 | 13 | 0.65 | 0.9 |
Brushless Gear Motor Technical Data
Reduction ratio | 3.55 | 5.31 | 6.6 | 13 | 19 | 23 | 26 | 30 | 37 | 50 | 74 | 92 | 111 | 139 | ||
FL90BLW27 24V-37130A LD=27 | Rated speed r/min | 761 | 508 | 409 | 208 | 142 | 117 | 104 | 90 | 73 | 54 | 36 | 29 | 24 | 20 | |
Rated torque N.m | 1.5 | 2.3 | 2.8 | 5.0 | 7.3 | 8.8 | 10 | 12 | 14 | 17 | 26 | 32 | 38 | 48 | ||
FL90BLW40 48V-16170A LD=40 | Rated speed r/min | 470 | 315 | 253 | 128 | 88 | 73 | 64 | 56 | 45 | 33 | 23 | 18 | 15 | 12 | |
Rated torque N.m | 3.1 | 4.6 | 5.7 | 10 | 15 | 18 | 20 | 23 | 29 | 35 | 52 | 65 | 78 | 80 | ||
Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | ||
Length(L) mm | 55.7 | 55.7 | 55.7 | 72.2 | 72.2 | 72.2 | 72.2 | 72.2 | 72.2 | 88.5 | 88.5 | 88.5 | 88.5 | 88.5 | ||
N.m Max. permissible load in a short time | 12 | 12 | 12 | 45 | 45 | 45 | 90 | 90 | 90 | 120 | 120 | 120 | 120 | 120 | ||

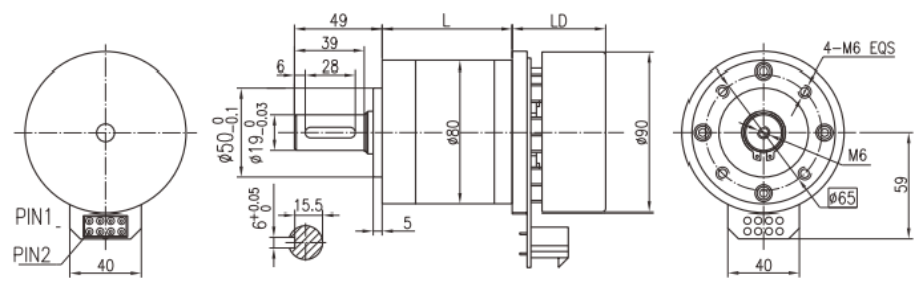

Dimensions
The outer rotor motor gets its name because the rotor is on the outside,
and it is characterized by small size (short length), light weight,and large output torque.
