CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
Size 34 [86mm]

The size 34 [86mm] Hollow Shaft Stepper Motor has Max. 4.5N·m of holding torque.

Motor Characteristics

Model No.

Rated Voltage
   (V)

Current
   (A)

Resistance
   (Ω)

Inductance
   (mH)

Holding Torque
   (N·m)

Detent Torque
   (N·m)

Motor length
   (mm)

34HS2076

5.7

3.0

1.9

15

4.5

0.095

76

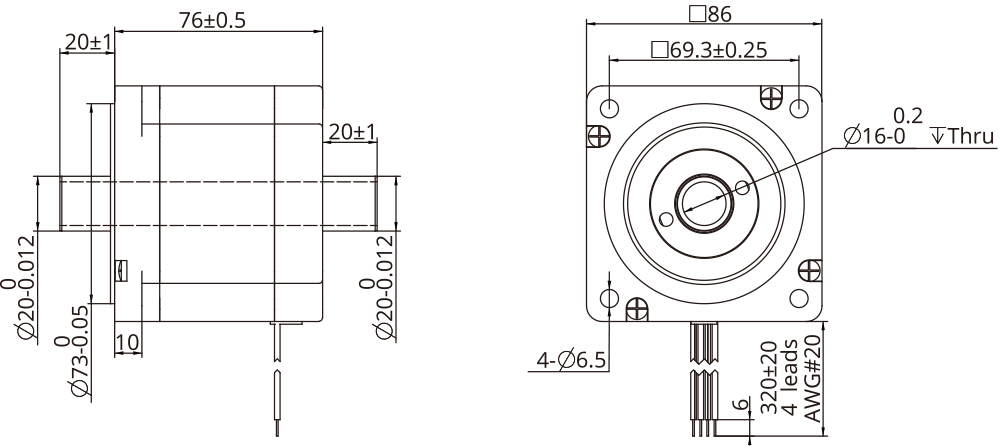

Dimensional Drawing

Hollow Shaft Size 34 (86mm) Dimensional Drawing

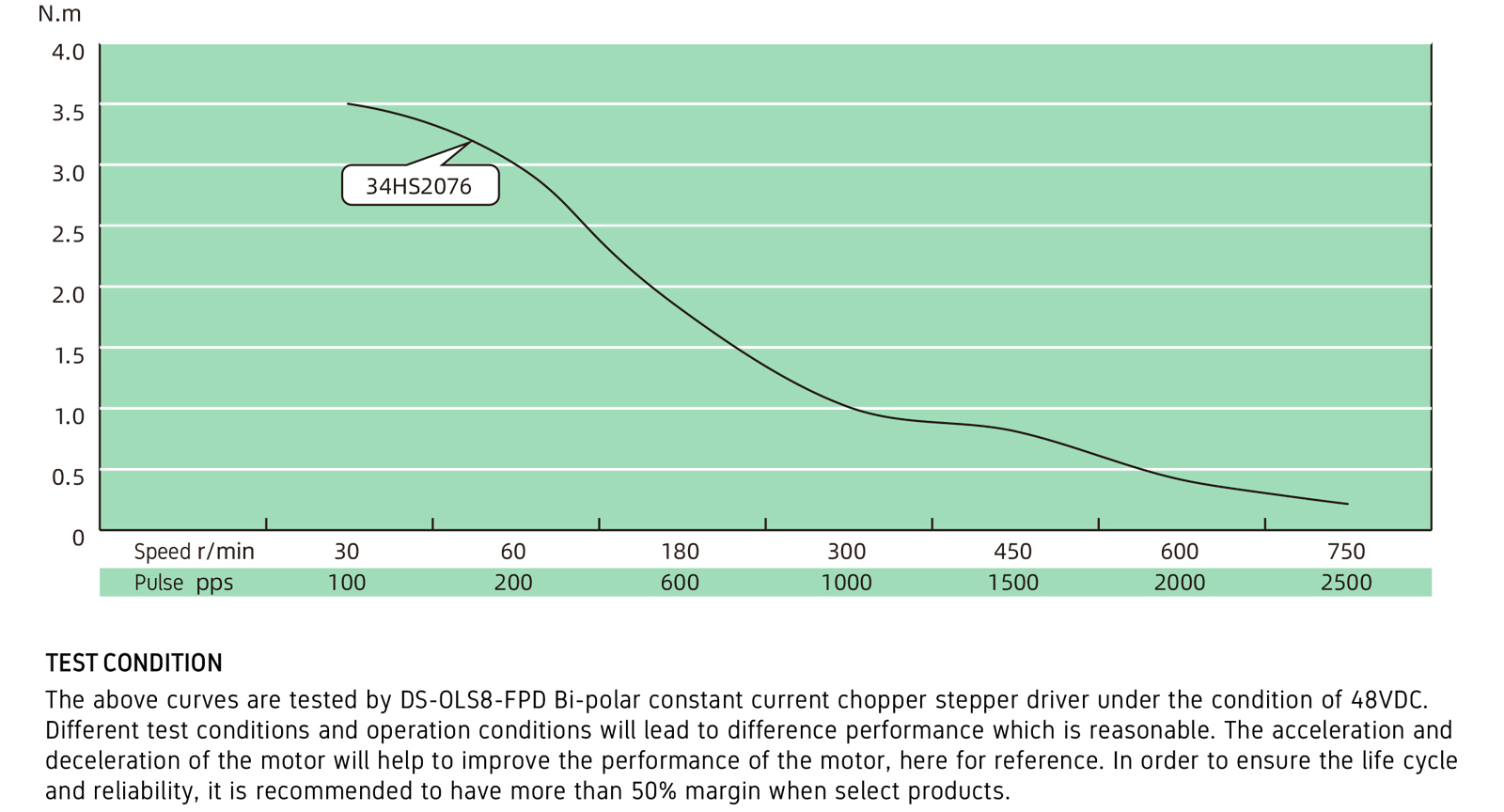

Torque Performance Curves

Torque Performance curves image

Options

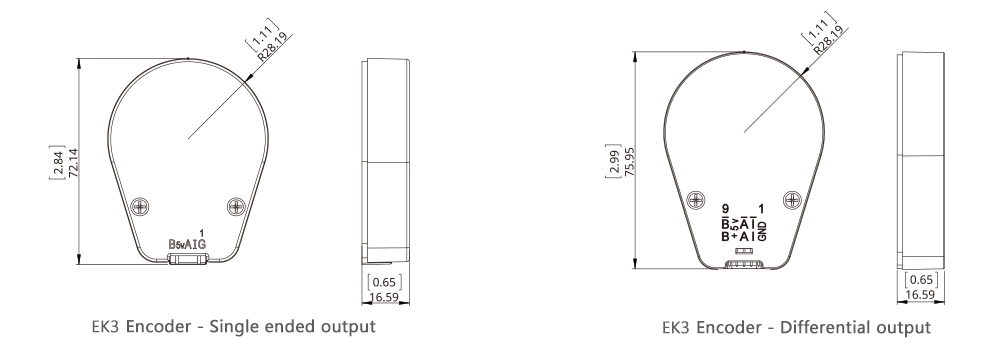

Encoder Option

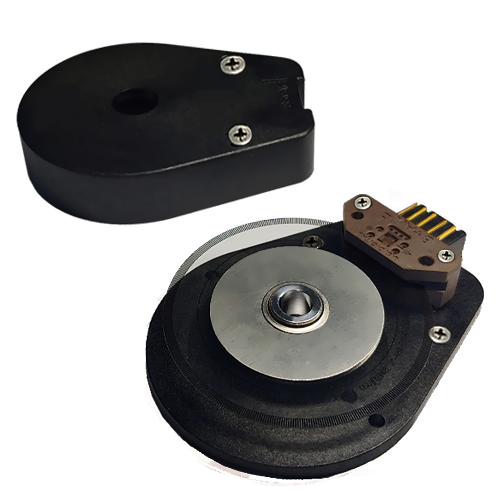

EK3 Encoder images

EK3 Encoder images

Resolution(CPR)

64

100

200

500

1000

1800

2000

2500

3600

Single ended output

0

1

2

3

4

5

6

7

8

Differential output


A

B

C

D

E

F

G

H

Resolution(CPR)

4000

5000

7200

8000

10000

Single ended output






Differential output

I

J

K

L

M
