37JB6K/35ZY30

37mm OD Standard Gearbox.Permissible Load Range: 0.6N.m

Motor Technical Data

Type

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

Rated

speed

r/min

Rated

torque

mN.m

Output

power

Rated

current

Stall

torque

mN.m

Stall

current

35ZY30-1230

3000

2400

1.2

280

0.56

35ZY30-

1250

5000

4300

1.8

330

1.20

Gear Motor Technical Data

35ZY30-1230 DC Motor

Reduction ratio	10	18	30	50	75	100	150	200	250	300	400	500	750	1000
Number of gear trains	2	3	3	4	4	4	5	5	5	5	6	6	6	6
Length(L) mm	19	21.5	21.5	24	24	24	26.5	26.5	26.5	26.5	29	29	29	29
No-load speed r/min	300	167	100	60	40	30	20	15	12	10	7.5	6	4	3
Rated speed r/min	240	133	80	48	32	24	16	12	10	9	7	5	3.2	2.4
Rated torque N.m	0.04	0.07	0.11	0.16	0.24	0.33	0.44	0.59	0.6	0.6	0.6	0.6	0.6	0.6
N.m Max. permissible load in a short time	0.3	0.6	0.6	1.2	1.2	1.2	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Direction of rotation	CCW	CW	CW	CCW	CCW	CCW	CW	cW	CW	CW	CCW	CCW	CCW	ccW

35ZY30-1250 DC Motor

Reduction ratio	10	18	30	50	75	100	150	200	250	300	400	500	750	1000
Number of gear trains	2	3	3	4	4	4	5	5	5	5	6	6	6	6
Length(L) mm	19	21.5	21.5	24	24	24	26.5	26.5	26.5	26.5	29	29	29	29
No-load speed r/min	500	278	167	100	67	50	33	25	20	16	12	10	6.6	5.0
Rated speed r/min	430	239	143	86	57	43	29	22	17	14	11.3	9.2	6.3	4.8
Rated torque N.m	0.04	0.05	0.10	0.16	0.22	0.29	0.44	0.58	0.6	0.6	0.6	0.6	0.6	0.6
N.m Max. permissible load in a short time	0.3	0.6	0.6	1.2	1.2	1.2	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
Direction of rotation	CCW	CW	CW	CCW	CCW	CCW	CW	CW	CW	CW	CCW	CCW	CCW	CCW

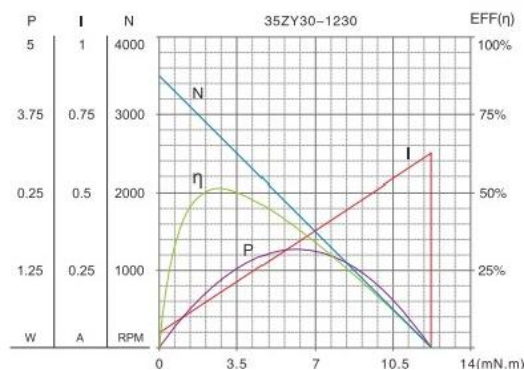

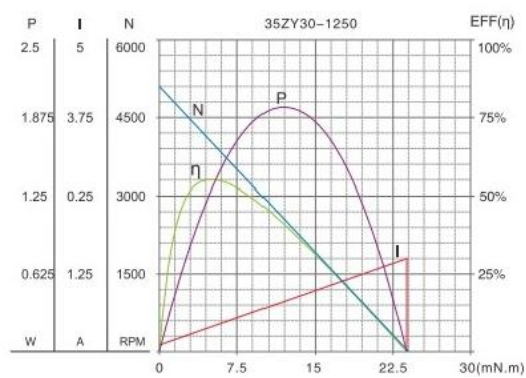

Motor Characteristic Figure

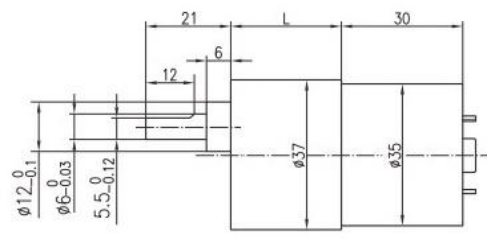

Dimensions
