32mm OD Planetary Gearbox.Permissible Load Range: 0.5N.m~5.0N.m
Wire Diagram
U | V | W | Vcc | Ha | Hb | Hc | GND |
Red | Yellow | Black | Red | Blue | Green | White | Black |
20AWG UL1569 | 26AWG UL1569 | ||||||
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-l oad speed r/min | No-load current A | Rated torque mN.m | Rated speed r/min | Rated current A | Rated power W | Reak torque mN.m | Peak current A |
28DMW56-2480 | 4 | 3 | 24 | 8000 | 0.25 | 30 | 6000 | 1.2 | 20 | 90 | 3.7 |
Brushless Gear Motor Technical Data
28DMW56-2480 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 35 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length(L) mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 | 46.6 |
No-load speed r/min | 2156 | 1544 | 571 | 421 | 296 | 229 | 163 | 136 | 118 | 98 | 84 | 70 | 44 | 37 | 32 | 26 |
Rated speed r/min | 1617 | 1159 | 429 | 310 | 222 | 171 | 122 | 102 | 88 | 73 | 63 | 52 | 33 | 28 | 24 | 20 |
Rated torque N.m | 0.10 | 0.14 | 0.34 | 0.46 | 0.66 | 0.85 | 1.1 | 1.3 | 1.5 | 1.8 | 2.1 | 2.5 | 3.5 | 4.3 | 4.9 | 5 |
Max. permissible load in a short time N.m | 1.5 | 1.5 | 6 | 6 | 6 | 6 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 |

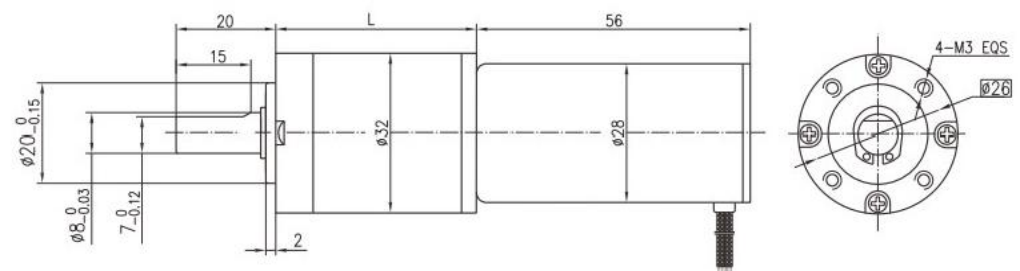

Dimensions
