22mm OD Planetary Gearbox.Permissible Load Range: 0.15N .m~ 1.5N.m
Wire Diagram
U | V | W | Vcc | Ha | Hb | Hc | GND |
Red | Brown | Black | Blue | Yellow | Brown | Red | Green |
26AWG UL1007 | 28AWG UL1007 | ||||||
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Rated power W | Peak torque mN.m | Peak current A | Line to line resistance ohms | Line to line inductance mH |
22ZWN70-1260 | 8 | 3 | 12 | 6000 | 3700 | 20.0 | 7.7 | 30 | 1.9 | 2.8 | 1.0 |
22ZWN70-2460 | 8 | 3 | 24 | 6000 | 3500 | 22.0 | 8.0 | 50 | 1.5 | 11.8 | 4.2 |
Brushless Gear Motor Technical Data
22ZWN70-1260 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
Length(L) mm | 25.4 | 25.4 | 34.0 | 34.0 | 34.0 | 42.4 | 42.4 | 42.4 | 42.4 |
No-load speed r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 |
Rated speed r/min | 997 | 714 | 264 | 195 | 137 | 73 | 52 | 37 | 27 |
Rated torque N.m | 0.067 | 0.093 | 0.23 | 0.31 | 0.44 | 0.74 | 1.5 | 1.5 | 1.5 |
Max. permissible load in a short time N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 3 | 3 | 3 | 3 |
22ZWN70-2460 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
Length(L) mm | 25.4 | 25.4 | 34.0 | 34.0 | 34.0 | 42.4 | 42.4 | 42.4 | 42.4 |
No-load speed r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 |
Rated speed r/min | 943 | 676 | 250 | 184 | 130 | 69 | 49 | 35 | 25 |
Rated torque N.m | 0.073 | 0.10 | 0.25 | 0.34 | 0.48 | 0.82 | 1.5 | 1.5 | 1.5 |
Max. permissible load in a short time N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 3 | 3 | 3 | 3 |

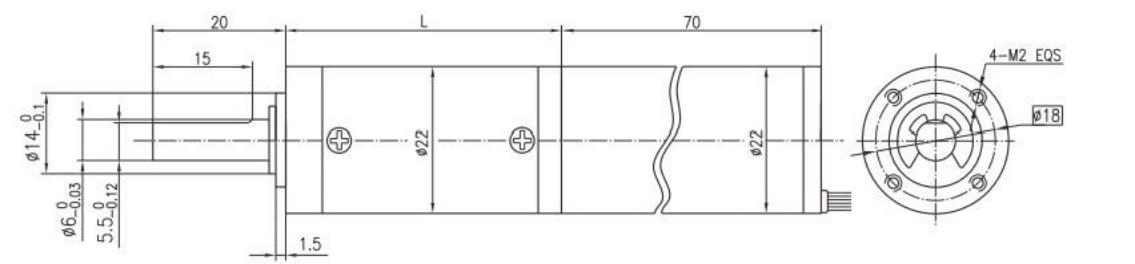

Dimensions
