22mm OD Planetary Gearbox.Permissible Load Range: 0.05N.m~0.5N.m
Wire Diagram
U | V | W | Vcc | Ha | Hb | Hc | GND |
Red | Brown | Black | Blue | Yellow | Brown | Red | Green |
26AWG UL1007 | 28AWG UL1007 | ||||||
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Rated power W | Peak torque mN.m | Peak current A | Line to line resistance ohms | Line to line inductance mH |
22ZWN45-2470 | 8 | 3 | 24 | 7000 | 4600 | 8.0 | 3.8 | 21 | 1.1 | 23 | 6.2 |
Brushless Gear Motor Technical Data
22ZWN45-2470 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length(L) mm | 24.4 | 24.4 | 31.0 | 31.0 | 31.0 | 37.4 | 37.4 | 37.4 | 37.4 | 43.8 | 43.8 | 43.8 |
No-load speed r/min | 1887 | 1351 | 500 | 368 | 259 | 137 | 99 | 70 | 50 | 37 | 27 | 19 |
Rated speed r/min | 1240 | 888 | 329 | 242 | 170 | 90 | 65 | 46 | 33 | 24 | 17 | 12 |
Rated torque N.m | 0.027 | 0.037 | 0.091 | 0.12 | 0.17 | 0.30 | 0.41 | 0.58 | 0.80 | 1 | 1 | 1 |
Max. permissible load in a short time N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 |

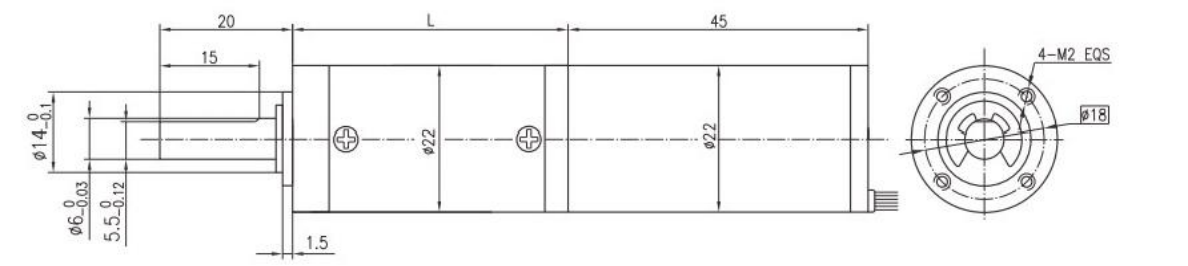

Dimensions
