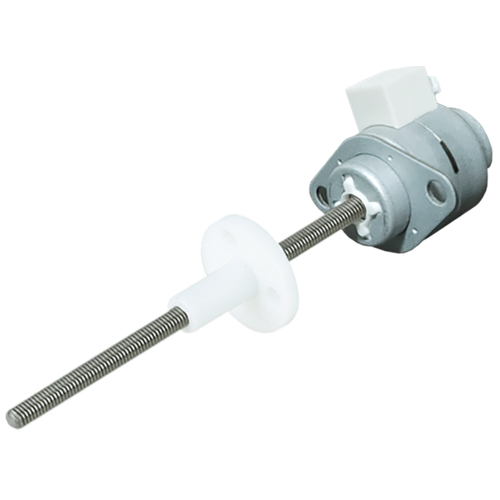

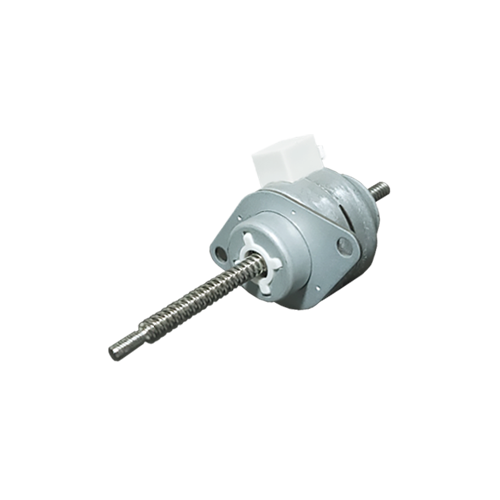

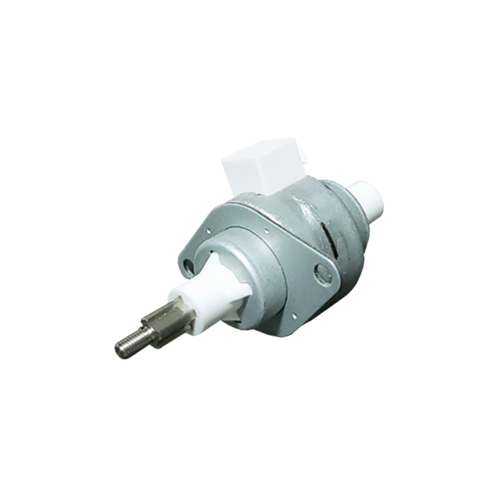

25mm PM Stepper Linear Actuator
The size 25mm PM Linear Actuator has External, Non-Captive and Kaptive version and various screw end machining and length customization is optional.
Motor Characteristics
| 25mm Frame | ||||
|---|---|---|---|---|
| Polarity | Bi-Polar | |||
| Linear Actuator Type | External, Non-captive, Kaptive | |||
| Step Angle | 7.5° | 15° | ||
| Winding | 5V | 12V | 5V | 12V |
| Phase Current | 370mA | 160mA | 370mA | 160mA |
| Phase Resistance | 13.5Ω | 70Ω | 13.5Ω | 70Ω |
| Phase Inductance | 12.5mH | 65mH | 9.5mH | 47mH |
| Power Consumption | 3.85W | |||
| Rotor Inertia | 1.08gcm2 | |||
| Insulation Class | B | |||
| Insulation Resistance | 100MΩ | |||
| Mass | 50g | |||
Available Lead Screw and Travel per Step
| Step Angle | Screw lead | Travel per step | Screw lead code | ||
|---|---|---|---|---|---|
| mm | inch | mm | inch | ||
| 7.5° | 0.6096 | 0.024 | 0.0127 | 0.0005 | AA |
| 1.2192 | 0.048 | 0.0254 | 0.0010 | B | |
| 2.4384 | 0.096 | 0.0508 | 0.0020 | J | |
| 15° | 0.6096 | 0.024 | 0.0254 | 0.0010 | AA |
| 1.2192 | 0.048 | 0.0508 | 0.0020 | B | |
| 2.4384 | 0.096 | 0.1016 | 0.0040 | J | |
Dimensional Drawings

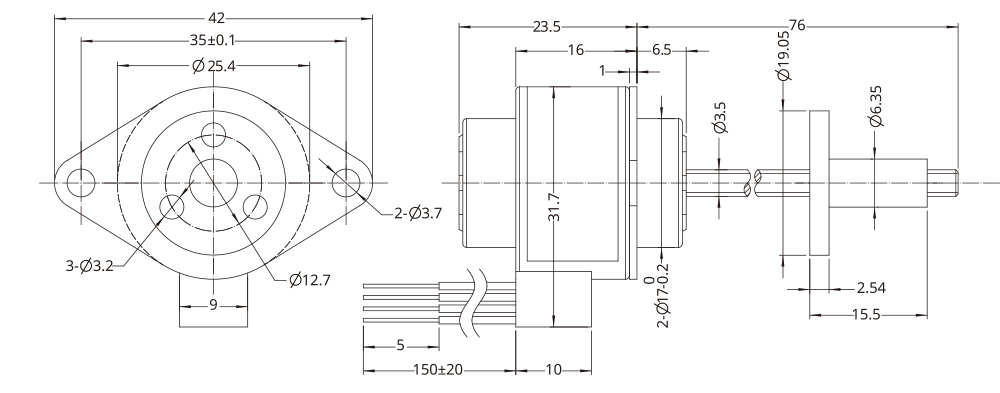

External

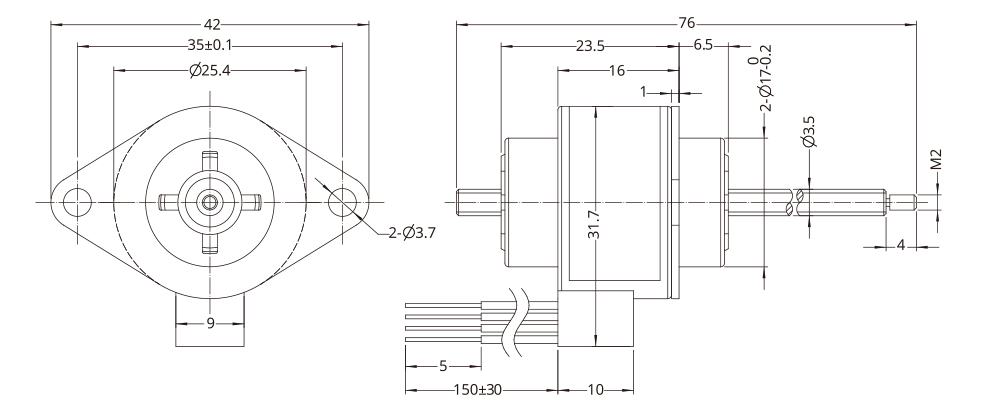

Non-Captive

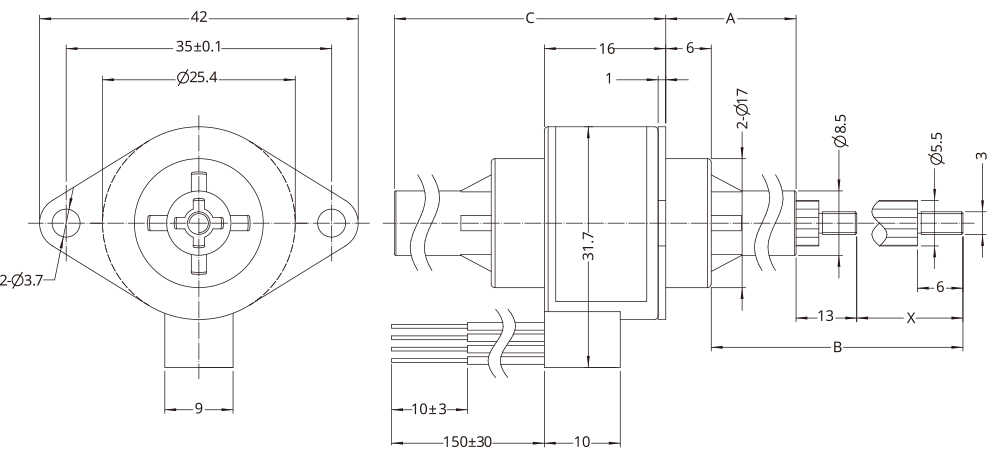

Kaptive

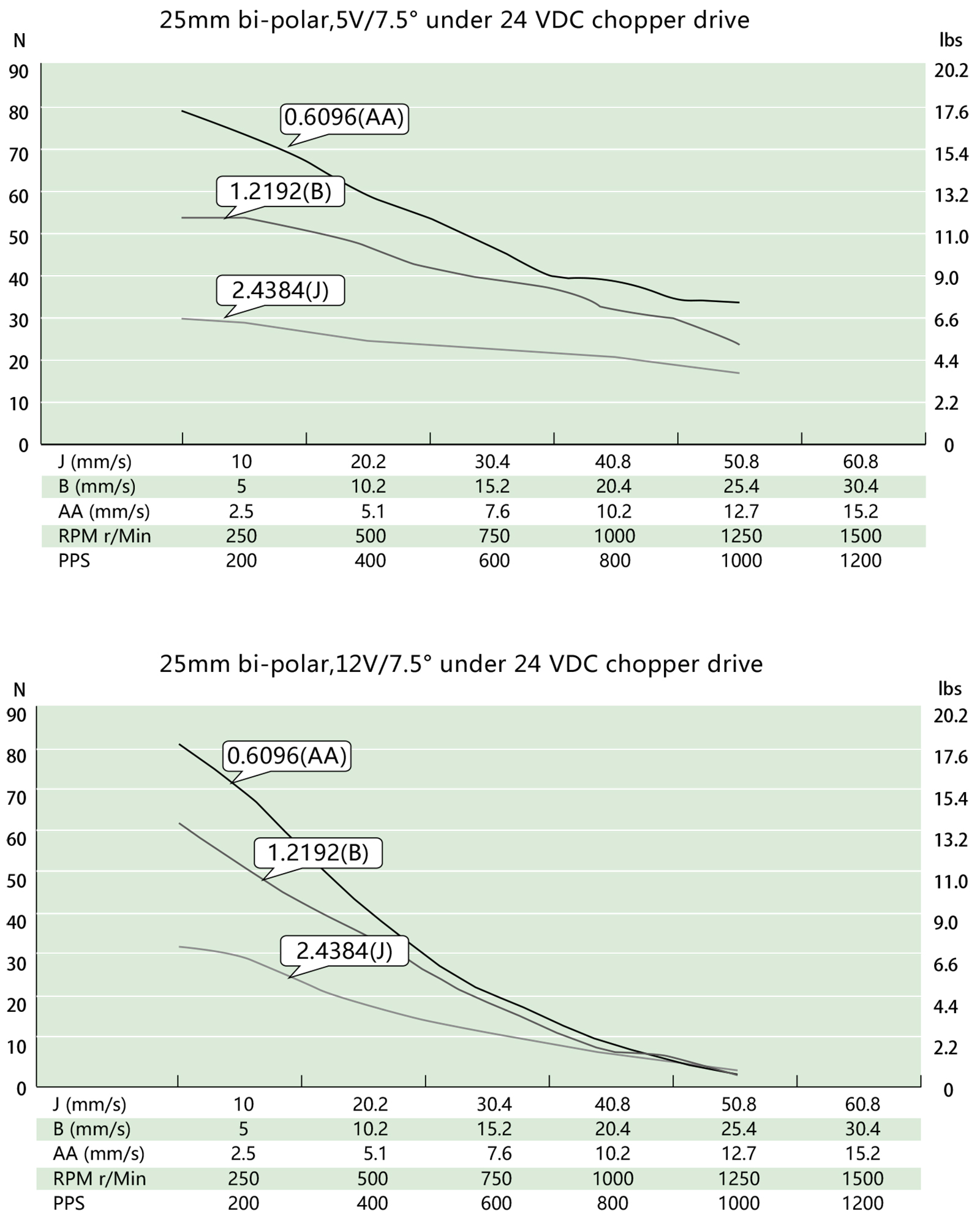

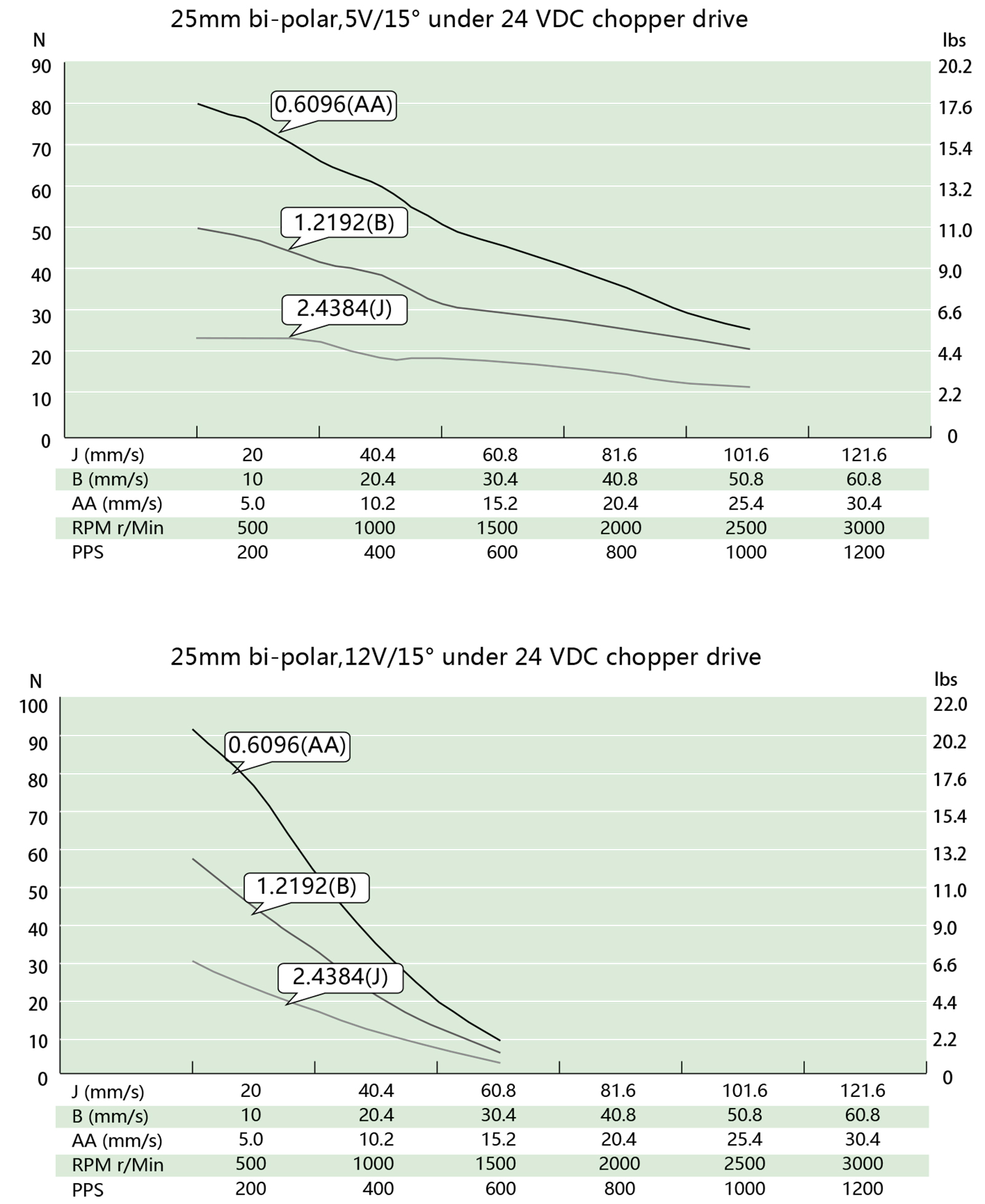

Stoke X (mm) Front extension A Total extension B Body length C (Max) 13 10.5±0.25 36.5 27.5 18 15.5±0.25 46.5 32.5 25 22.5±0.25 60.5 39.5 31 28.5±0.25 72.5 45.5 Speed Thrust Curves
Options
Screw End Machining

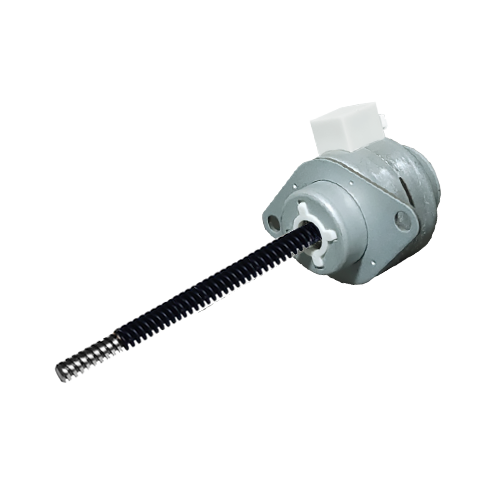

Teflon Coating
If customer's applications require greaseless screw and nut combination, we offer teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options and all types of PM linear actuators such as External, Non-Captive and Kaptive.
