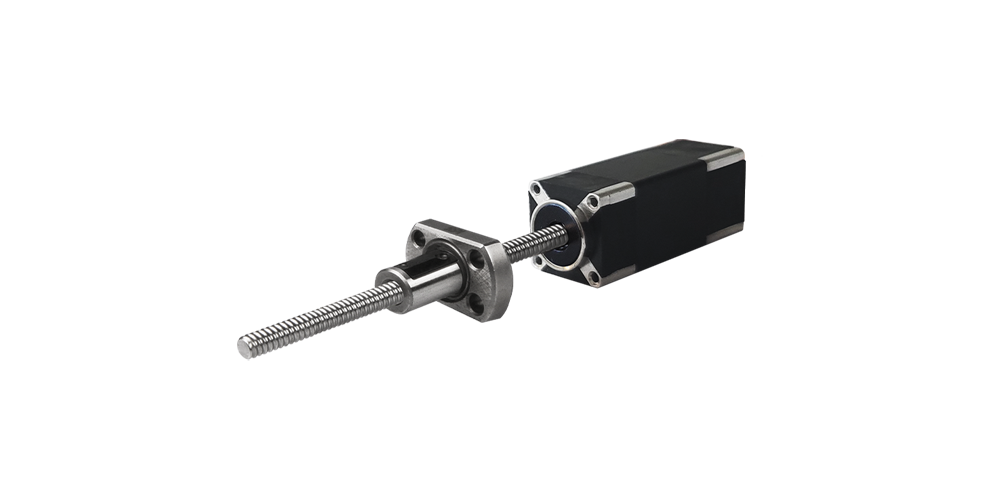

14mm Stepper Ball Screw Linear Actuator
The size 6 is our smallest Stepper Ball Screw Linear Actuators.External version is available.Various screw end machining and encoder options are available.
Motor Characteristics
| Model No. | Rated Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Lead Wire No. | Motor Length "L"[mm] |
|---|---|---|---|---|---|---|
| 6E2103 | 6.6 | 0.3 | 22 | 3.6 | 4 | 32 |
Ball Screw Specification
| Ball screw type | 0401 | 0402 |
|---|---|---|
| Ball Size | Ф0.8 | Ф0.8 |
| Number of thread | 1 | 1 |
| Thread direction | Right | |
| Shaft root dia. | Ф3.3 | |
| Number of circuit | 3.7×1 | 2.7×1 |
| Shaft, nut material | SCM415H | |
| Surface hardness | HRC58~62 | |
| Anti-rust treatment | Anti-rust oil | |
| Grade | C7 | |
| Nut size | A | B | C | D | H | W | X | Position accuracy | Total run out | Axial play | Dynamic load[N] | Static load[N] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BS0401 | 23 | 4 | 17 | 11 | 15 | 17 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 560 | 790 |
| BS0402 | 23 | 4 | 19 | 11 | 15 | 17 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 420 | 570 |
* The unit of Position accuracy, Total run out and Axial play is [mm].

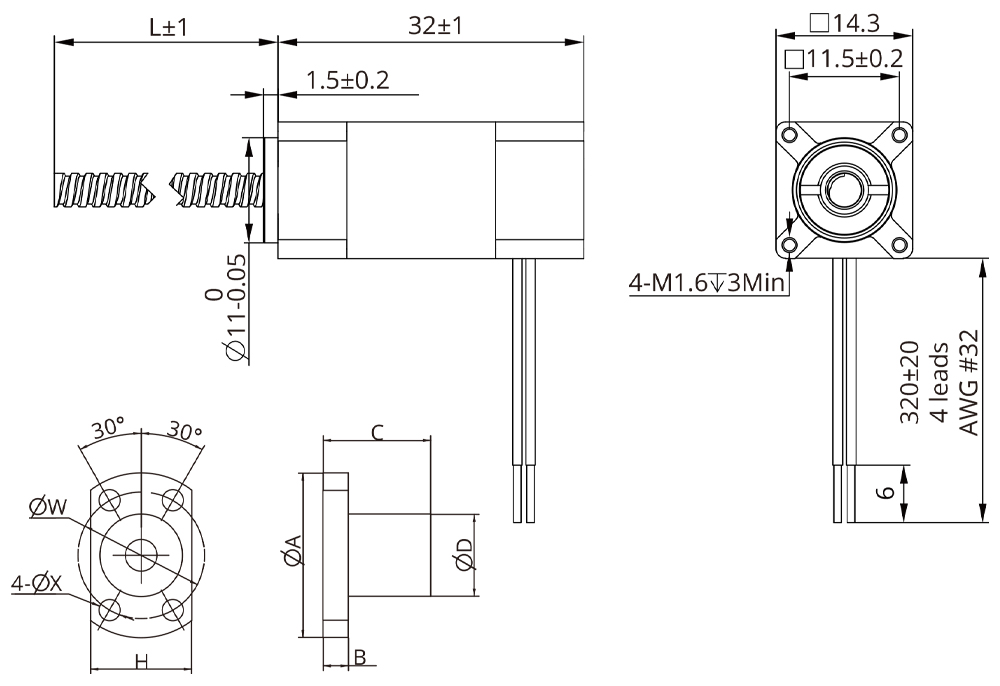

Dimensional Drawings

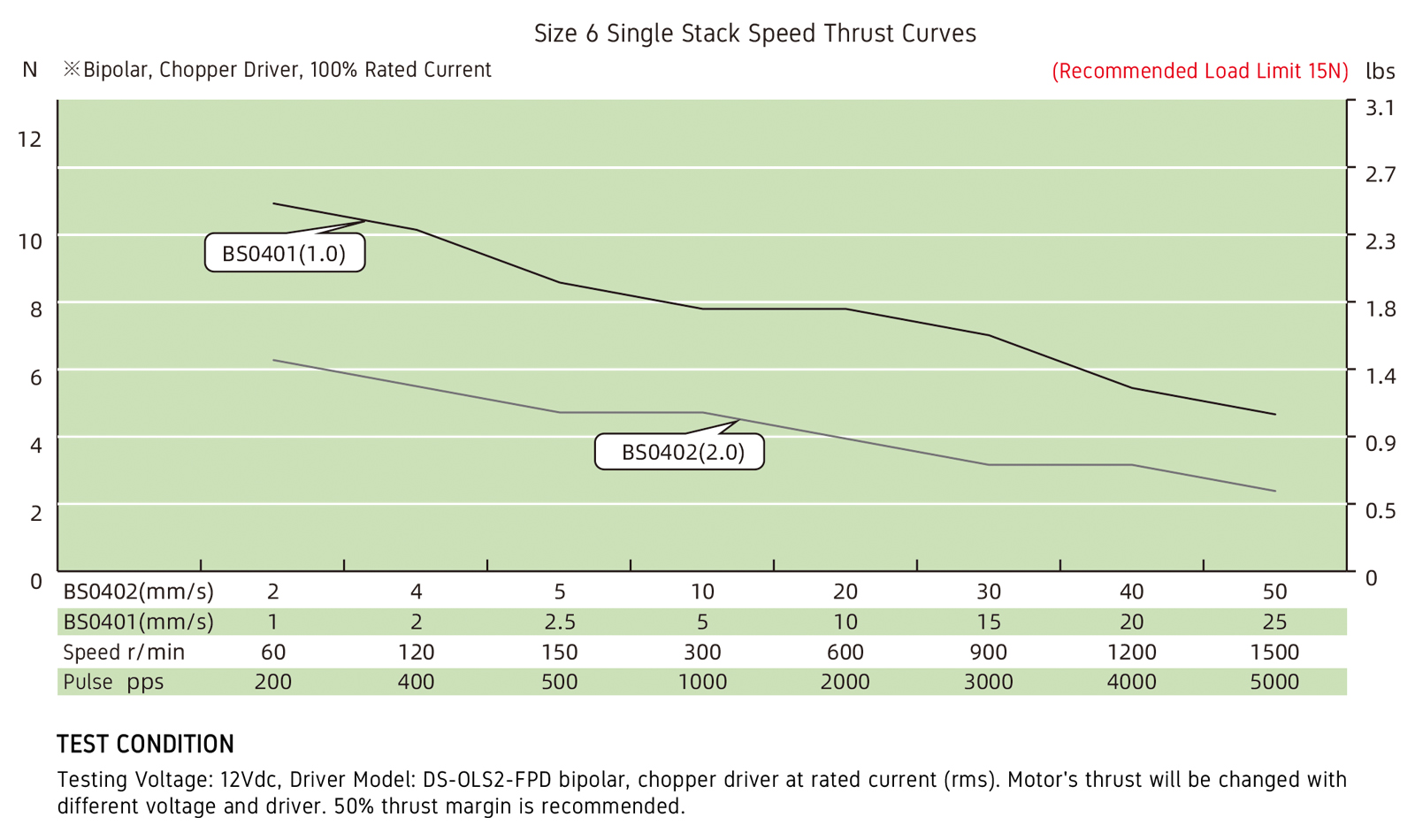

Speed Thrust Curves
Options
Screw End Machining

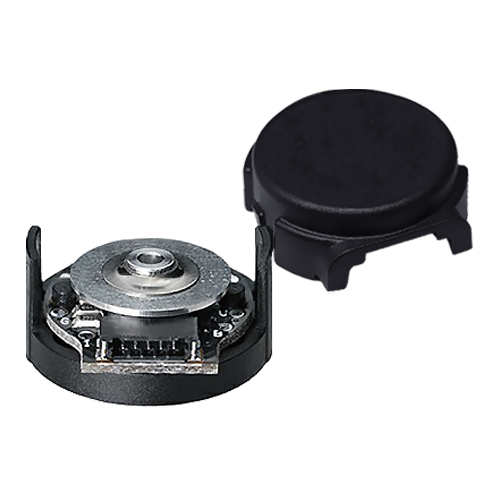

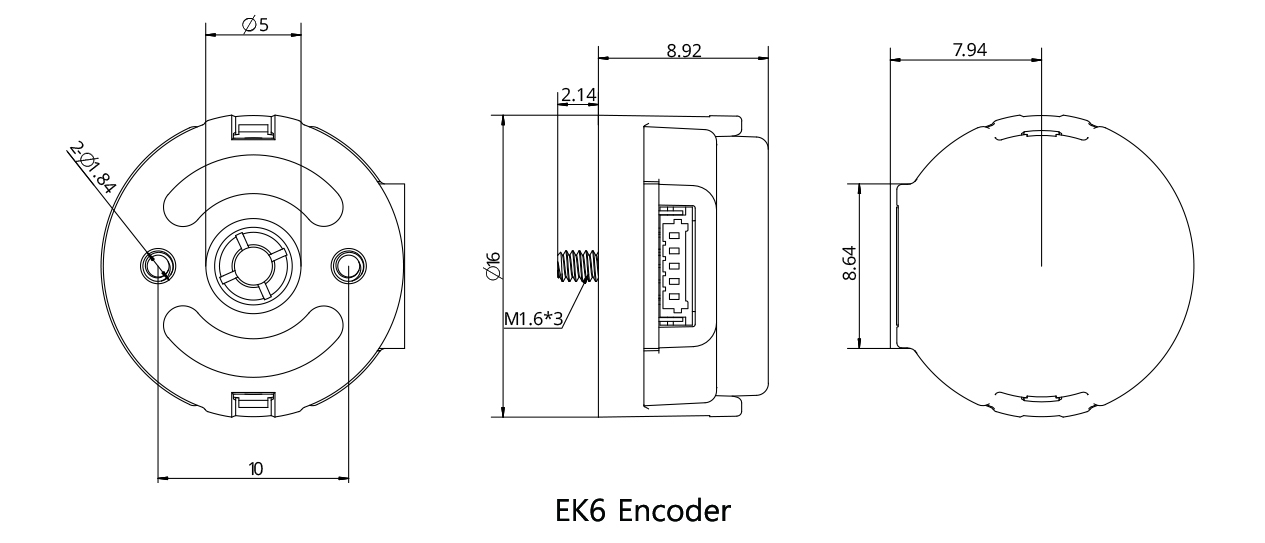

Encoder Option
| Resolution(CPR) | 250 | 256 | 500 | 512 | 1000 | 1024 | 2000 | 2048 | 4000 | 4096 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
