● Step & direction (PUL/DIR) control● Input voltage 12-30VDC● 8 selectable micro-step resolutions of 400-12800 via DIP switches● 8 selectable output current settings of 0.3 – 2.2A via DIP switche···
Description

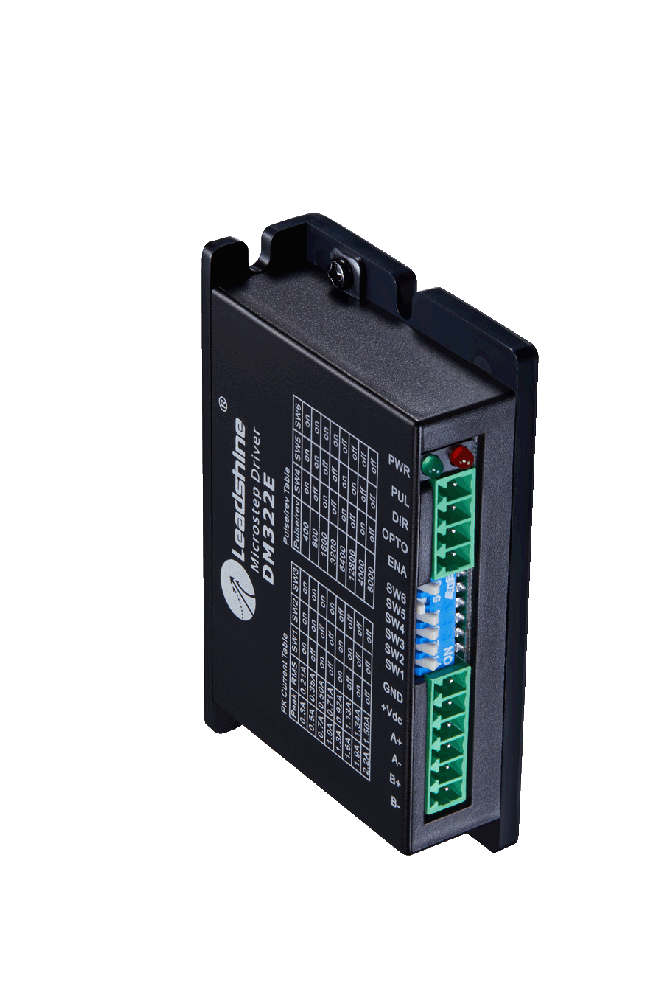

The DM322E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 12-30VDC and it can output 2.2A current. All the micro step and output current are done via DIP switches. Therefore, the DM322E are ideal choices for applications requiring simple step & direction control of NEMA11, 14, 16, 17 stepper motors.
Technical Data
| Model | DM322E |
| Series | DM |
| Command Source | PUL&DIR |
| Operation Voltage (VDC) | 12-30VDC |
| Output Current (A, Peak) | 2.2 |
| Input Frequency (KHz, Max.) | 70 |
| Logical Voltage (VDC) | 5 |
| # of Inputs | 3 |
| # of Outputs | / |
| Characteristics | Standard |
Dimensions
