60mm OD Planetary Gearbox.Permissible Load Range: 9N.m~30N.m
Planetary Gearbox
Ring material | Metal |
Bearing at output | Ball bearings |
Max. Radial load(12mm from flange) | 300N |
Max.shaft axial load | 200N |
Radial play of shaft( near to flange) | ≤0.08 mm |
Axial play of shaft | ≤0.4 mm |
60STH Hybrid Stepping Motor Specifications
Model No. | Rated Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Rotor Inertia | Weight | Length L1 | Max. Gear Ratio | |
Single Shaft | V | A | Q | mH | kg.cm | g.m² | kg | mm | |||
60STH45-2008AF | parallel | 2.1 | 2.8 | 0.75 | 2 | 11 | 8 | 275 | 0.6 | 47 | ≤1:115 |
60STH56- 2008AF | parallel | 2.52 | 2.8 | 0.9 | 3.6 | 16.5 | 8 | 400 | 0.77 | 56 | ≤1:77 |
A-Single Shaft, B-Double shaft.
lanetary Gearbox Specifications
Reduction ratio | 3.60 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | ||
Number of gear trains | 1 | 2 | 3 | |||||||||||
Length(L2) mm | 37.8 | 49.4 | 60.8 | |||||||||||
Max. rated torque | kg.cm | 90 | 150 | 300 | ||||||||||
Short time permissible torque | kg.cm | 270 | 450 | 900 | ||||||||||
Efficiency % | 90% | 81% | 73% | |||||||||||
Backlash at no-load | 0.6° | 1.0° | 1.5° | |||||||||||
W e i g h t g | 500 | 688 | 876 |

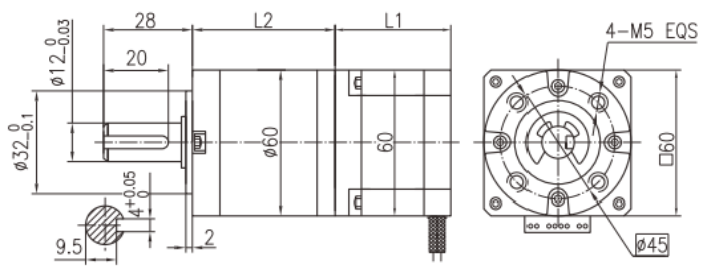

Dimensions

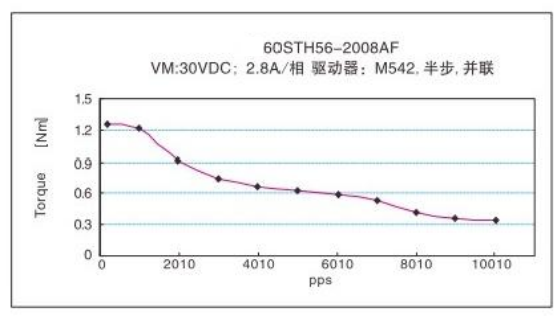

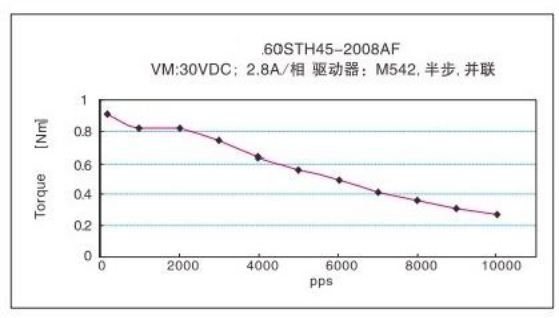

Frequency-torque characteristics
Gearbox 60JMS300K:60mm OD Precision Planetary gearbox, Permissible Load Rnge:300kg.cm.
