42 series brushless motor
3 Phase DC Brushless Motor42 Series 42mm*42mm frame

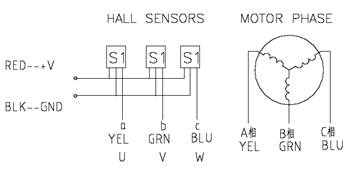

Winding type:Star
Hall effect angle:120 degree electrical angle
Shaft run out:0.025mm
Radial play:0.02mm@450g
End play:0.08mm@450g
Max. radial force:28N @ 20mm from the flange
Max.axial force:10N
Insulation class:Class B
Dielectric strength:500VDC for one minute
Insulation resistance:100MΩMin.,500VDC
Electrical Specifications | ||||||||||
Series Model | Rated power |
Rated voltage |
Rated current |
Numder of poles | Rated speed | Rated torque |
Peak torque |
Torque constant |
Length |
Weight |
W | VDC | A | rpm | N.m | N.m | N.m/A | mm | Kg | ||
42BL3A50-240 | 31 | 24 | 1.8 | 8 | 3000 | 0.1 | 0.3 | 0.056 | 51 | 0.35 |
42BL3A70-240 | 62 | 24 | 3.4 | 8 | 3000 | 0.2 | 0.6 | 0.056 | 71 | 0.55 |
42BL3A90-240 | 94 | 24 | 5.2 | 8 | 3000 | 0.3 | 0.9 | 0.056 | 91 | 0.65 |

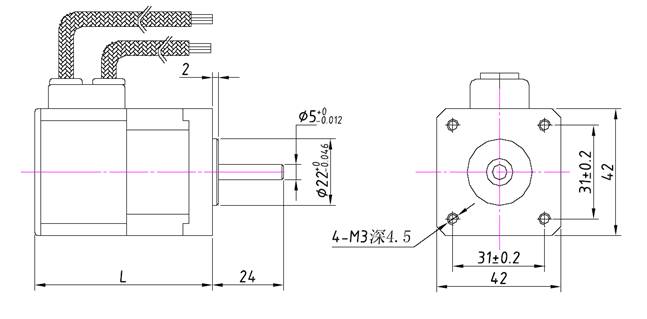

Dimensions
*We can customize products according to customer requirements
