3 Phase DC Brushless Motor 80 Series 80mm*80mm frame
Winding type:Star
Hall effect angle:120 degree electrical angle
Shaft run out:0.025mm
Radial play:0.02mm@450g
End play:0.08mm@450g
Max. radial force:220N @ 20mm from the flange
Max.axial force:60N
Insulation class:Class B
Dielectric strength:1000VDC for one minute
Insulation resistance:100MΩMin.,500VDC
Electrical Specifications | ||||||||||
Series Model | Rated power | Rated voltage | Rated current | Number of poles | Rated speed | Rated torque | Peak torque | Torque constant | Length | Weight |
W | VDC | A | rpm | N.m | N.m | N.m/A | mm | Kg | ||
80BLF3A90-440-06 | 313 | 48 | 8 | 4 | 3000 | 1 | 3 | 0.125 | 105 | 1.8 |
80BLF3A120-440-06 | 470 | 48 | 12 | 4 | 3000 | 1.5 | 4.5 | 0.125 | 125 | 2.8 |
80BLF3A140-640-06 | 627 | 310 | 2.5 | 4 | 3000 | 2 | 6 | 0.8 | 145 | 3.6 |
80BLF3A90-440-12 | 250 | 48 | 6.5 | 8 | 3000 | 0.8 | 2.4 | 0.125 | 105 | 1.8 |
80BLF3A120-440-12 | 375 | 48 | 9.8 | 8 | 3000 | 1.2 | 3.6 | 0.125 | 125 | 2.8 |
80BLF3A140-640-12 | 500 | 310 | 2 | 8 | 3000 | 1.6 | 4.8 | 0.8 | 145 | 3.6 |
80BLF3A90-440 | 375 | 48 | 9.8 | 4 | 3000 | 1.2 | 3.6 | 0.125 | 105 | 1.8 |
80BLF3A120-640 | 627 | 310 | 2.5 | 4 | 3000 | 2 | 6 | 0.8 | 125 | 2.8 |
80BLF3A140-640 | 880 | 310 | 3.5 | 4 | 3000 | 2.8 | 8.4 | 0.8 | 145 | 3.6 |

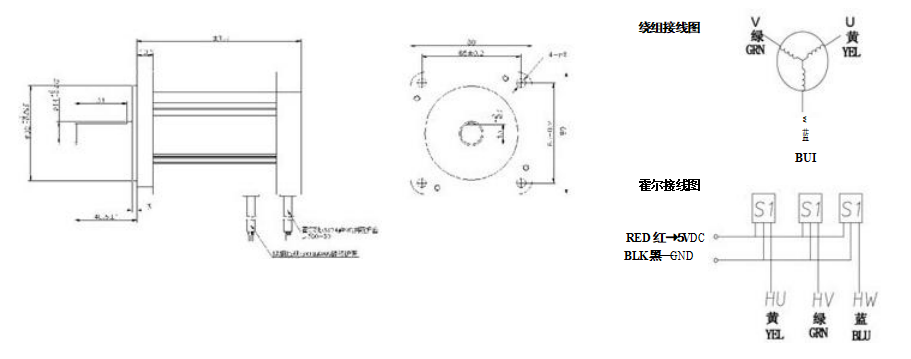

Dimension
*We can customize products according to customer requirements
