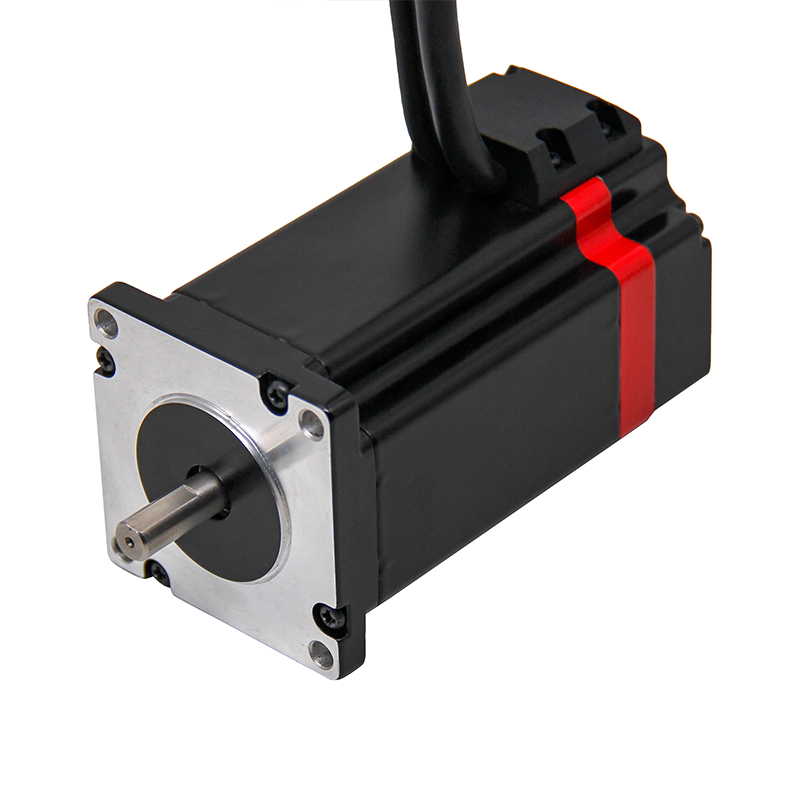

24HSM Series Step-Servo System

24HSM Series Step-Servo System

Product Detail

Step-Servo System are specifically designed to be paired with Step-Servo Motor to create motor and drive combinations that outperform traditional step motor systems. Each Step-Servo motor is a premium, two-phase, hybrid step motor built with an integral high resolution feedback device. The performance gains achieved when using a Step-Servo motor in combination with one of our Step-Servo drives include high peak torque ranges for faster acceleration and greater machine throughput, as well as quieter operation and less power consumption.


Low vibration

Low noise

Low fever

High efficiency

High response

High precision

High torque


Electrical Specifications

Series
Model
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Lead
Wire
(No.)
Holding
Torque
(N.cm)
Motor
Length L
(mm)
Rotor
Inertia
(g.cm²)
Motor
Weight
(g)
Step
Angle
(°)

24HSM4442EG

4.20.40.74

0.9

452005501.8

24HSM6442EG

0.51.41.654350700

24HSM1456EG

5.50.421.83.0907801150
Encoder Resolution
2500Line Driver Output3-channel:A+A-B+B-Z+Z-

*Note:We can manufacture products according to customer’s requirements.


Dimensions(Unit: mm)

nema 24HSM Series Step-Servo motor System Dimensions


Optional Accessories(With the purchase)

Motor Extension Cord

24HSM Series Step-Servo System Optional Accessories


Type

Length

23-469920410/469930410-100A

1M

23-469920410/469930410-200A

2M

23-469920410/469930410-500A

5M

23-469920410/469930410-1000A

10M


Encoder Extension Cord



Type

Length

430250800/430200800-100A

1M

430250800/430200800-200A

2M

430250800/430200800-500A

5M

430250800/430200800-1000A

10M
