10BY
to convert rotary motion into linear motion. It is widely used in automobile parts, coffee machine, water or gas control valve......
SPECIFICATIONS:
| Model | Step Angle (Deg.) | No. of Phase | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | No-load Staring Frequency(pps) | Pull-in Torque (g.cm) | Detent Torque (g.cm) | Holding Torqu(g.cm) | Leads | Wdg | Fig |
| 10BY20L03 | 18 | 2 | 3.3 | 0.22 | 15 | 2.4 | 1200 | 6 | 10 | 16.3 | a | 1 | |
| 10BY20L06-1 | 18 | 2 | 3.3 | 0.22 | 15 | 2.4 | 1200 | 5.8 | 10 | 16.3 | a | 2 | |
| 10BY20L022 | 18 | 2 | 12 | 0.2(恒流） | 26 | 3.8 | 1800 | 12 | 10 | 20 | UL 1571 28# | a | 3 |

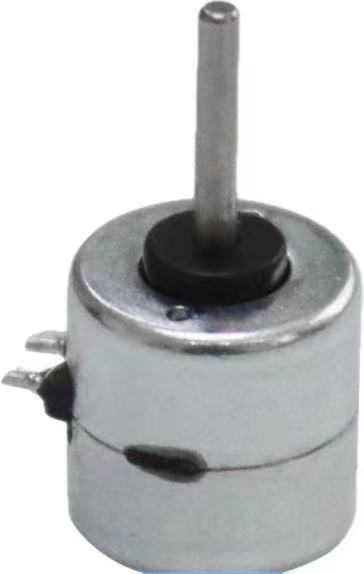

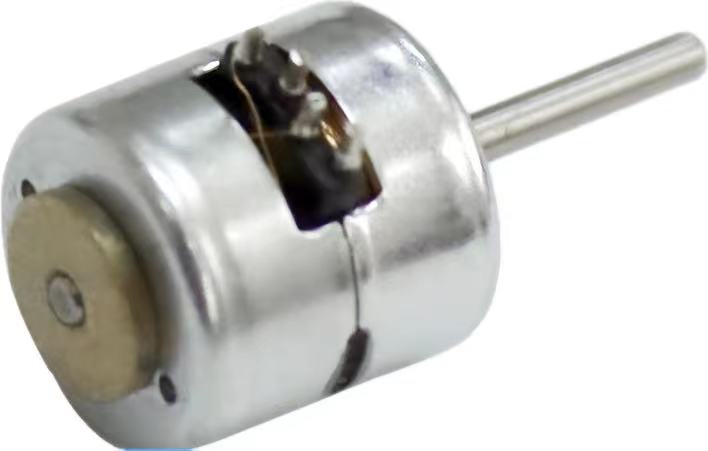

FIGURE:
Wiring Diagram:
