42mm OD Planetary Gearbox.Permissible Load Range: 1N.m~10N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
42ZY90-2434 | 24 | 3400 | 0.45 | 2450 | 95 | 24 | 1.8 | 300 | 5.8 |
Gear Motor Technical Data
42ZY90-2434 DC Motor
Reduction ratio | 14 | 19 | 22 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 219 |
Number of gear trains | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
Length(L) mm | 42.1 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 |
No-load speed r/min | 243 | 179 | 155 | 126 | 69 | 58 | 50 | 41 | 36 | 30 | 19 | 16 |
Rated speed r/min | 175 | 129 | 111 | 91 | 50 | 42 | 36 | 30 | 26 | 21 | 14 | 11 |
Rated torque N.m | 1.1 | 1.5 | 1.7 | 2.1 | 3.4 | 4.1 | 4.7 | 5.7 | 6.6 | 8.0 | 10 | 10 |
N.m Max. permissible load in a short time | 12 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 25 | 30 | 30 |

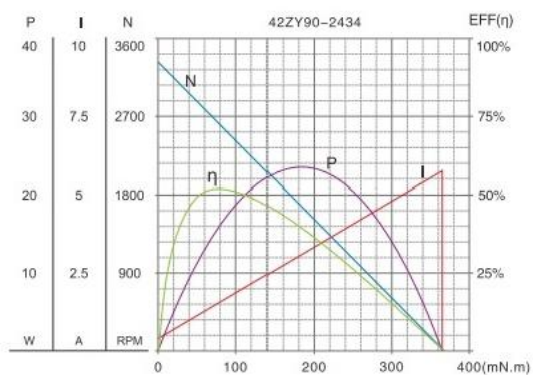

Motor Characteristic Figure

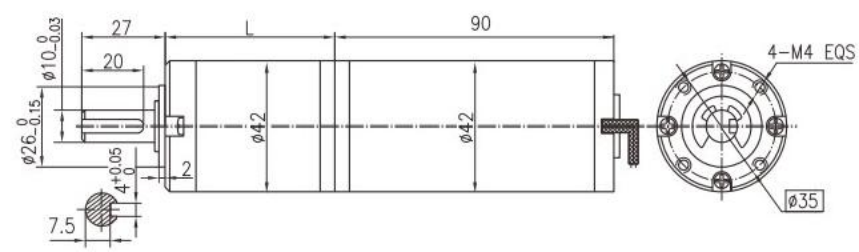

Dimensions
Low noise gearboxes, 1-Stage use helical gears, The code name 'L'is used in the model.
