36mm OD Planetary Gearbox.Permissible Load Range: 0.3N.m~3.0N.m
Motor Technical Data
Rated vol tage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A | |
36ZY57-2430 | 24 | 3000 | 100 | 2500 | 15 | 4.5 | 0.52 | 92 | 2.2 |
36ZY57- 2442 | 24 | 4200 | 120 | 3600 | 19 | 7 | 0.52 | 97 | 2.8 |
12V DC Optional, speed and torque is the same as 24V DC's.
Gear Motor Technical Data
36ZY57-2430 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 | 306 | 354 | 427 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 |
No-load speed r/min | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 16 | 14 | 12 | 9.8 | 8.5 | 7.0 |
Rated speed r/min | 674 | 483 | 179 | 132 | 93 | 49 | 35 | 25 | 18 | 13 | 11 | 9.8 | 8.2 | 7.1 | 5.9 |
Rated torque N.m | 0.050 | 0.070 | 0.17 | 0.23 | 0.33 | 0.56 | 0.78 | 1.1 | 1.5 | 1.8 | 2.1 | 2.4 | 3.0 | 3.0 | 3.0 |
N.m Max. permissible load in a short time | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
36ZY57-2442 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 | 306 | 354 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 |
No-load speed r/min | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 22 | 19 | 17 | 14 | 12 |
Rated speed r/min | 970 | 695 | 257 | 189 | 133 | 71 | 51 | 36 | 26 | 19 | 16 | 14 | 12 | 10 |
Rated torque N.m | 0.063 | 0.089 | 0.22 | 0.29 | 0.42 | 0.71 | 0.98 | 1.4 | 1.9 | 2.3 | 2.7 | 3.0 | 3.0 | 3.0 |
N.m Max. permissible load in a short time | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |

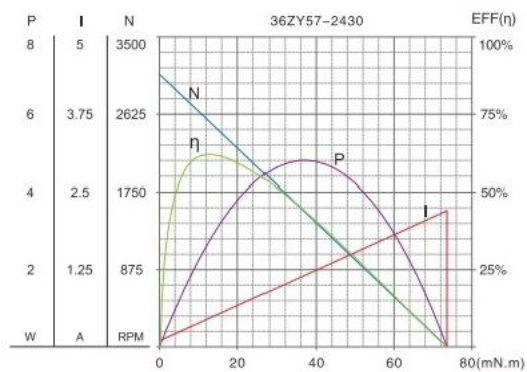

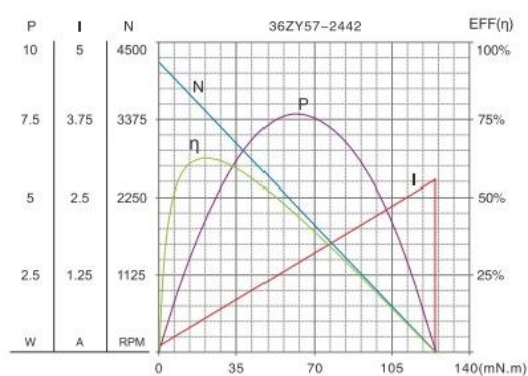

Motor Characteristic Figure

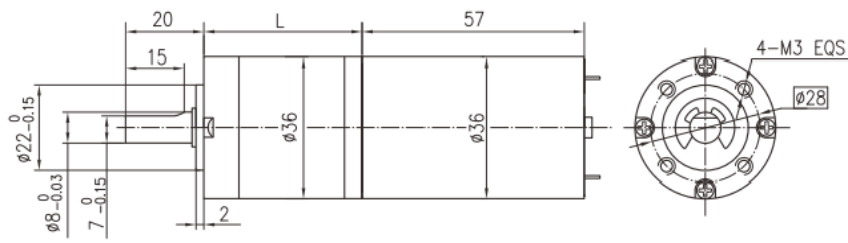

Dimensions
Ring gear can be selected within the two materials: Powder metal(Type:36JXF30K), Metal(Type:36JXE30K).
