Size 34 [86mm] Actuator is our biggest in size, and can provide up to 2270N of continuous thrust.has two form factors available - External and Non-Captive
Motor Characteristics
| Motor | Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Weight[g] | Lead Wire No. | Motor Length[mm] |
|---|---|---|---|---|---|---|---|
| 34-2113 | 12 | 1.3 | 9.2 | 71 | 2370 | 4 | 76 |
| 34-2130 | 5.7 | 3 | 1.9 | 15 | 2370 | 4 | 76 |
| 34-2155 | 2.85 | 5.5 | 0.52 | 4.5 | 2370 | 4 | 76 |
NOTE
Motor Insulation Class B, Motor Temperature Rise 80°C, Ambient Temperature -20℃~55℃
Available Lead Screw and Travel per Step
| Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]* |
|---|---|---|---|---|---|
| 0.625 | 15.875 | 0.1 | 2.54 | K | 0.0127 |
| 0.625 | 15.875 | 0.125 | 3.175 | L | 0.0159 |
| 0.625 | 15.875 | 0.2 | 5.08 | R | 0.0254 |
| 0.625 | 15.875 | 0.25 | 6.35 | S | 0.0318 |
| 0.625 | 15.875 | 0.5 | 12.7 | Y | 0.0635 |
| 0.625 | 15.875 | 1 | 25.4 | Z | 0.127 |
* Value truncated
* Motor winding parameters and screw length can be customized according to customer requirements

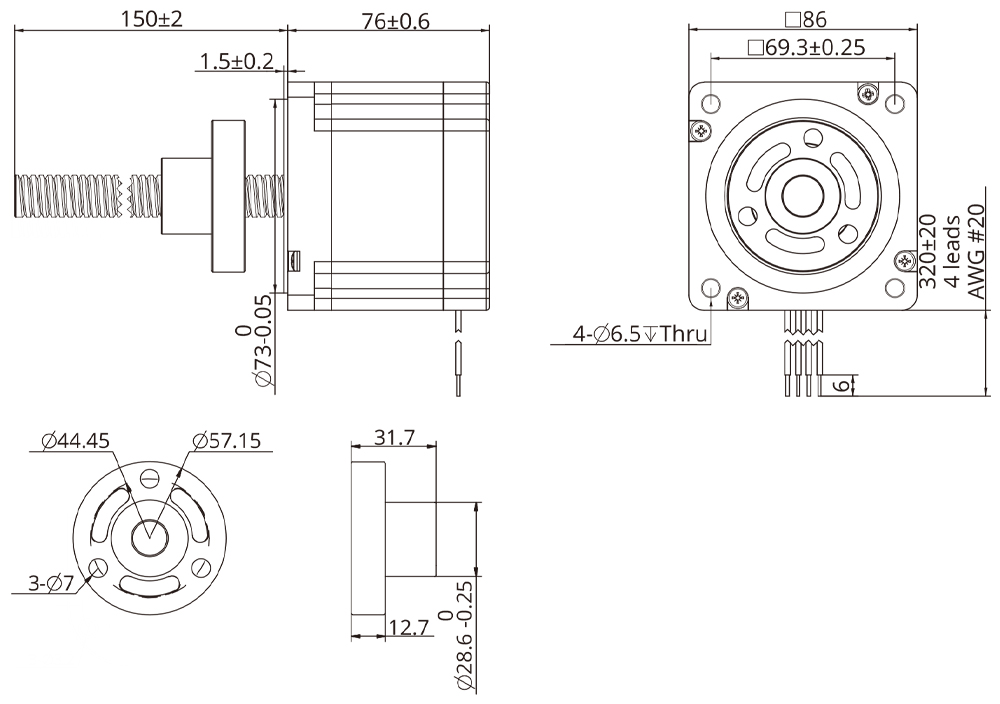

Dimensional Drawings

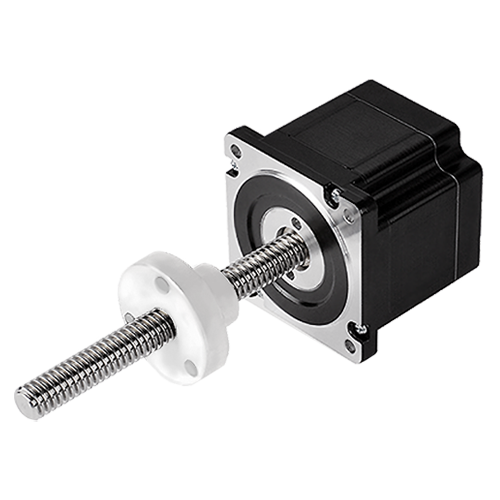

External

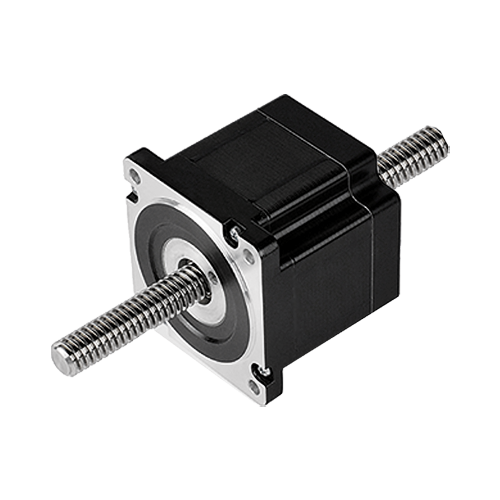

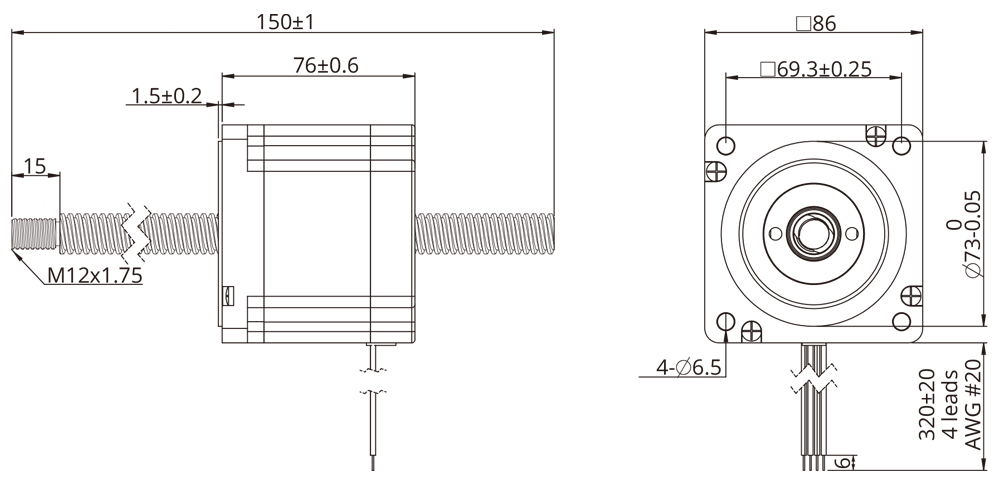

Non- Captive

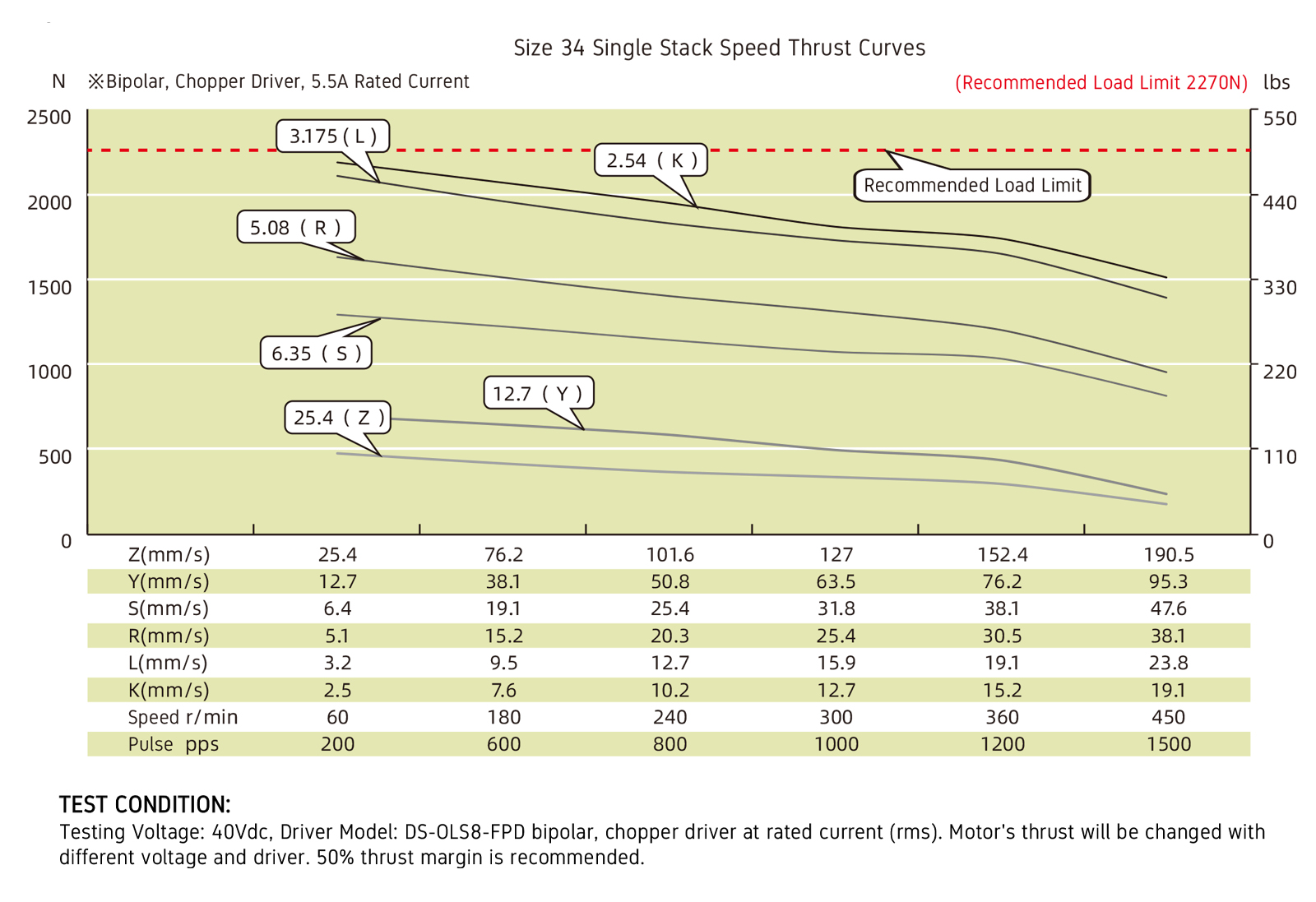

Speed Thrust Curves
Options
Screw End Machining

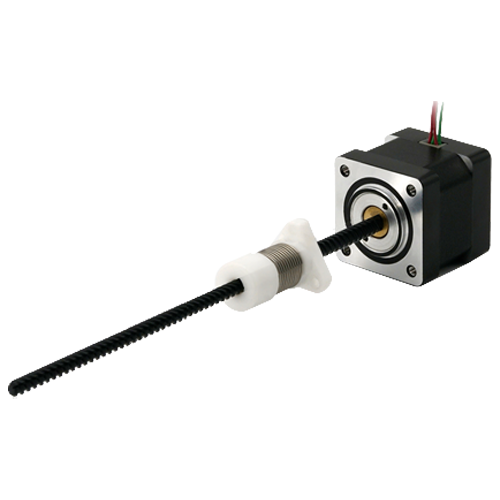

Teflon Coating
If customer's applications require greaseless screw and nut combination,we offer teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options and all types of linear actuators such as External, Non-Captive, Electric Cylinder and Kaptive.
In addition, anti-backlash nut also can be combined with teflon coated lead screw too.

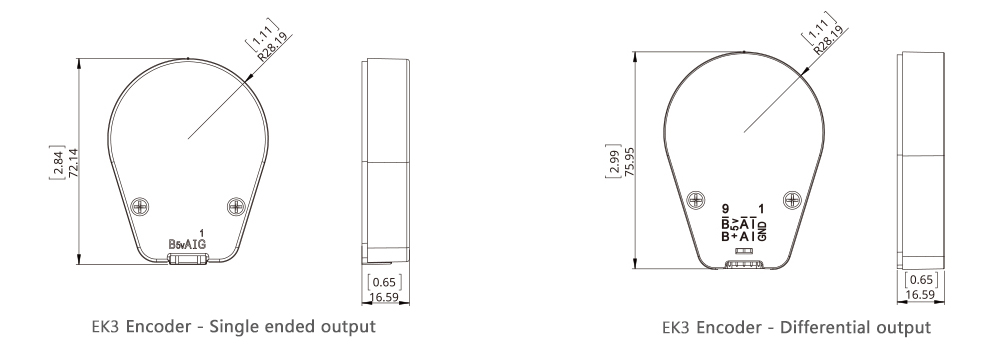

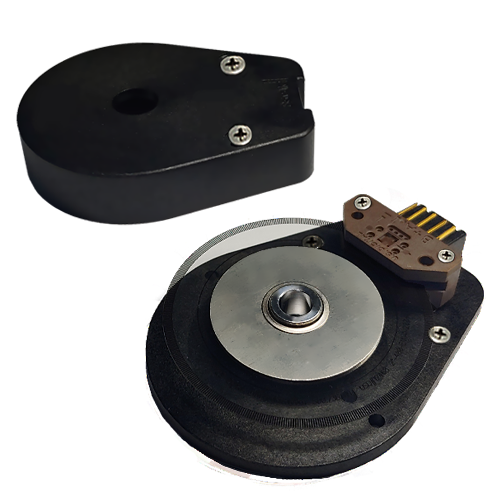

Encoder Option
Resolution(CPR) 64 100 200 500 1000 1800 2000 2500 3600 4000 Single ended output 0 1 2 3 4 5 6 7 8 Differential output A B C D E F G H I
| Resolution(CPR) | 5000 | 7200 | 8000 | 10000 |
| Single ended output | ||||
| Differential output | J | K | L | M |

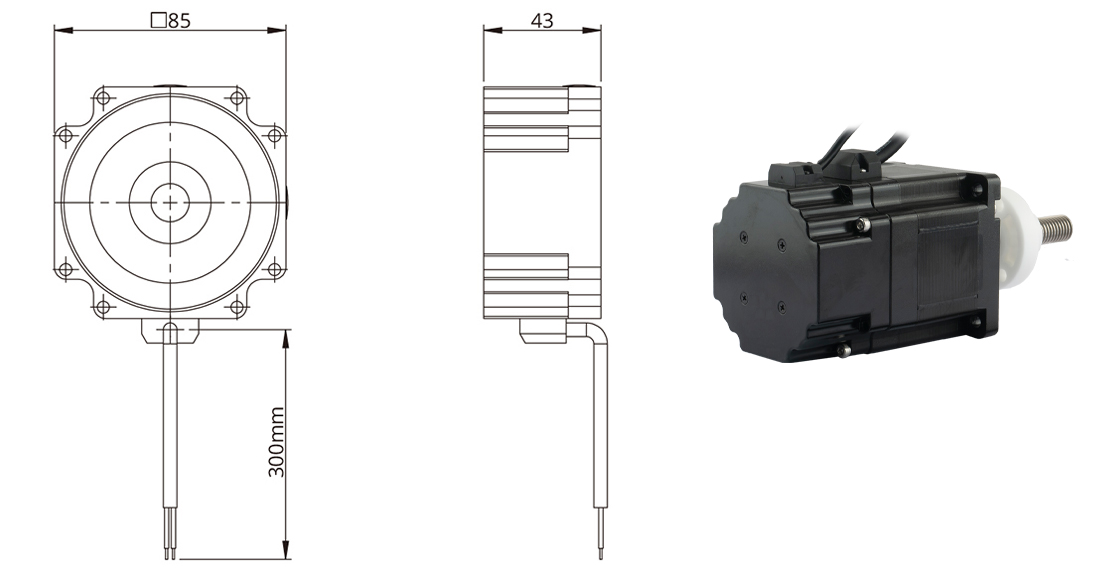

Power-Off Brake
Power Off Brake 5.0N·m [Available For Size 34 Motor]
Parameter
1. Rated Voltage : DC24V +/- 5%
2. Resistance : 80Ω +/- 5%
3. Power consumption : 6W
4. Hold Torque : >5N·m
5. Insulation Class B
6. Insulation Resistance : >100Mohm (DC500V)
7. Dielectrical Strength : 1000 VAC for 1 second
8. Retraction time : 50ms
9. Release time : 30ms
10. Gyration gap : <1°
11. Emergency brake time : > 200 times
12. Lifetime : > 2,000,000 times
13. Noise Level : <60db
