Size 6 [14mm]

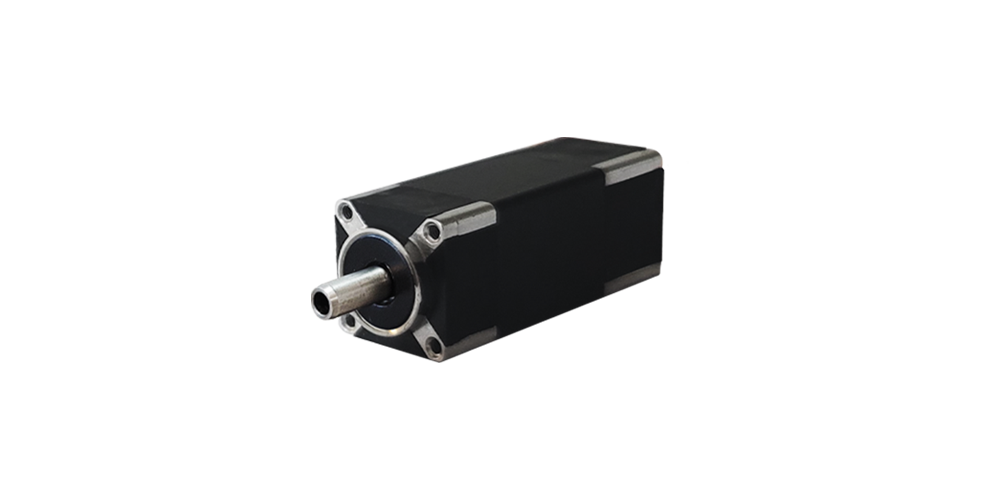

The size 6 [14mm] Hollow Shaft Stepper Motor is the smallest hollow shaft motor . It has Max. 0.005N·m of holding torque.

Motor Characteristics

Model No.Rated Voltage
(V)
Current
(A)
Resistance
(Ω)
Inductance
(mH)
Holding Torque
(N·m)
Detent Torque
(N·m)
Motor length
(mm)
6HS20306.60.3234.00.0050.00232

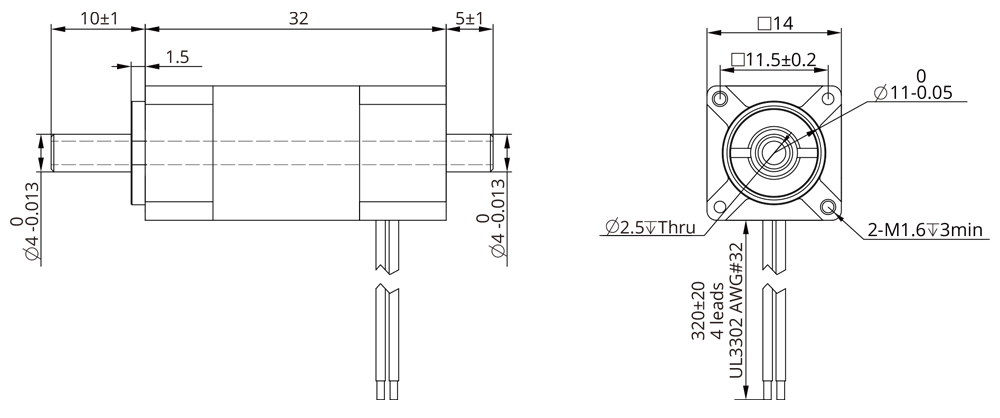

Dimensional Drawing

Hollow Shaft Size 6 (14mm) Dimensional Drawing

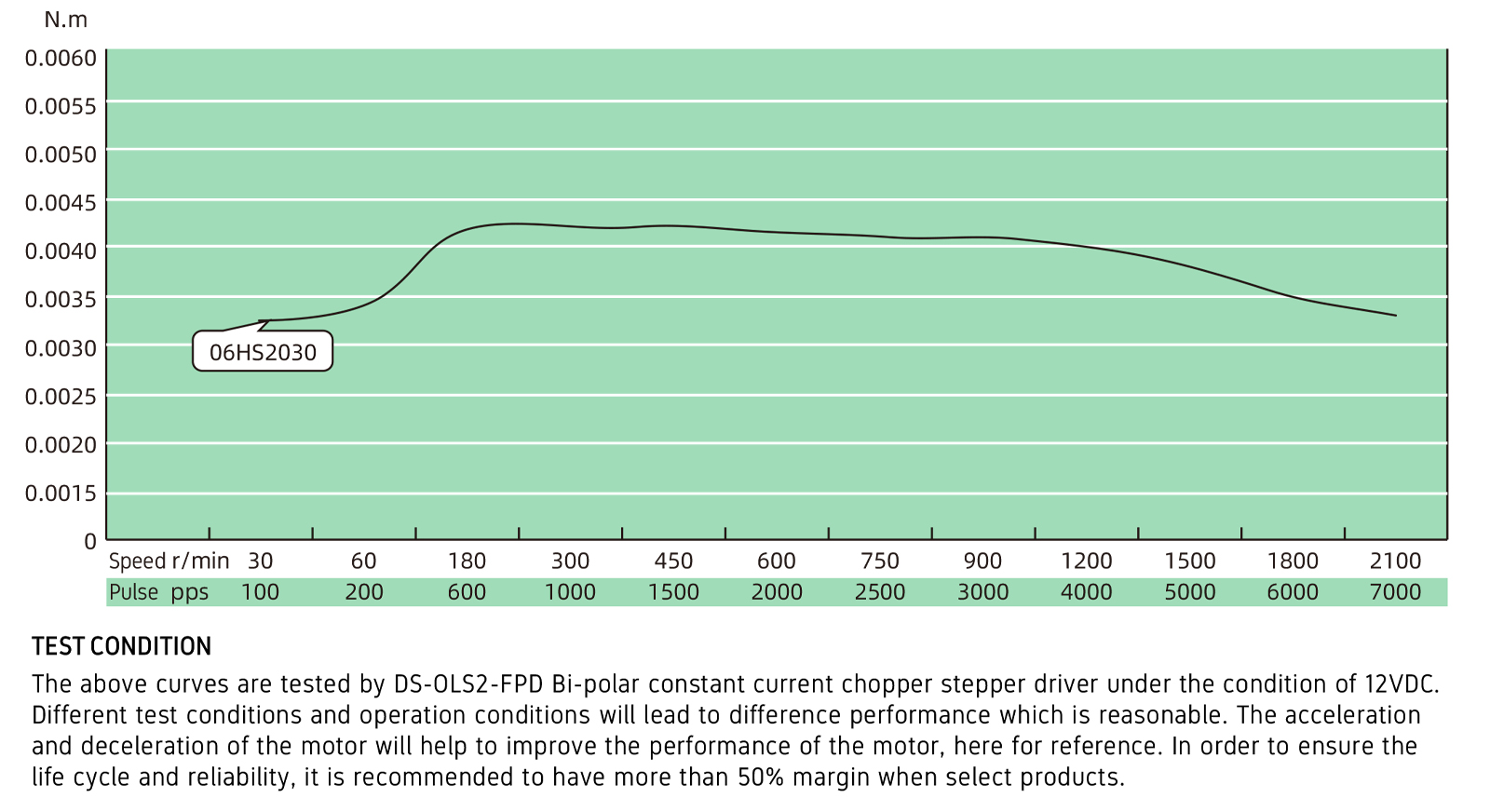

Torque Performance Curves

Torque Performance curves image
