Size 11 [28mm]

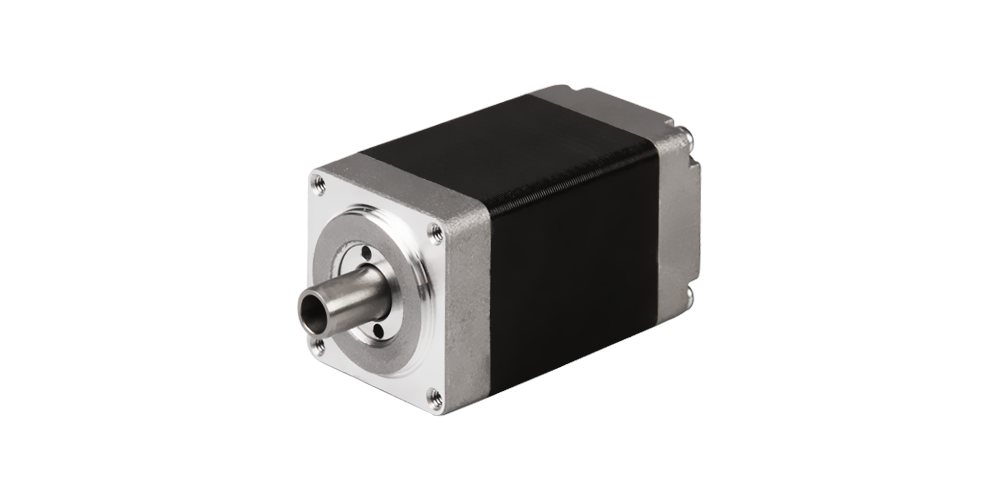

The size 11 [28mm] Hollow Shaft Stepper Motor has Max. 0.1N·m of holding torque.
Motor Characteristics
| Model No. | Rated Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Holding Torque (N·m) | Detent Torque (N·m) | Motor length (mm) |
|---|---|---|---|---|---|---|---|
| 11HS2033 | 2.1 | 1.0 | 2.1 | 1.5 | 0.053 | 0.004 | 33 |
| 11HS2045 | 4.1 | 1.0 | 4.1 | 4.0 | 0.1 | 0.004 | 45 |

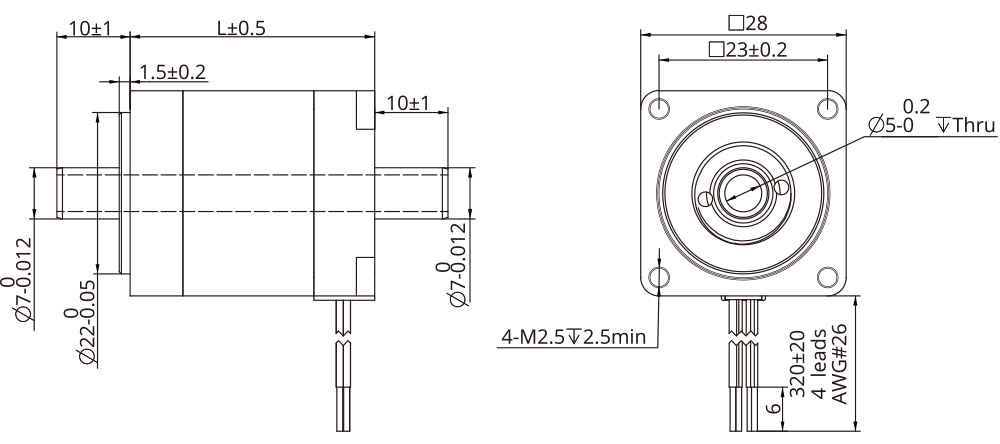

Dimensional Drawing

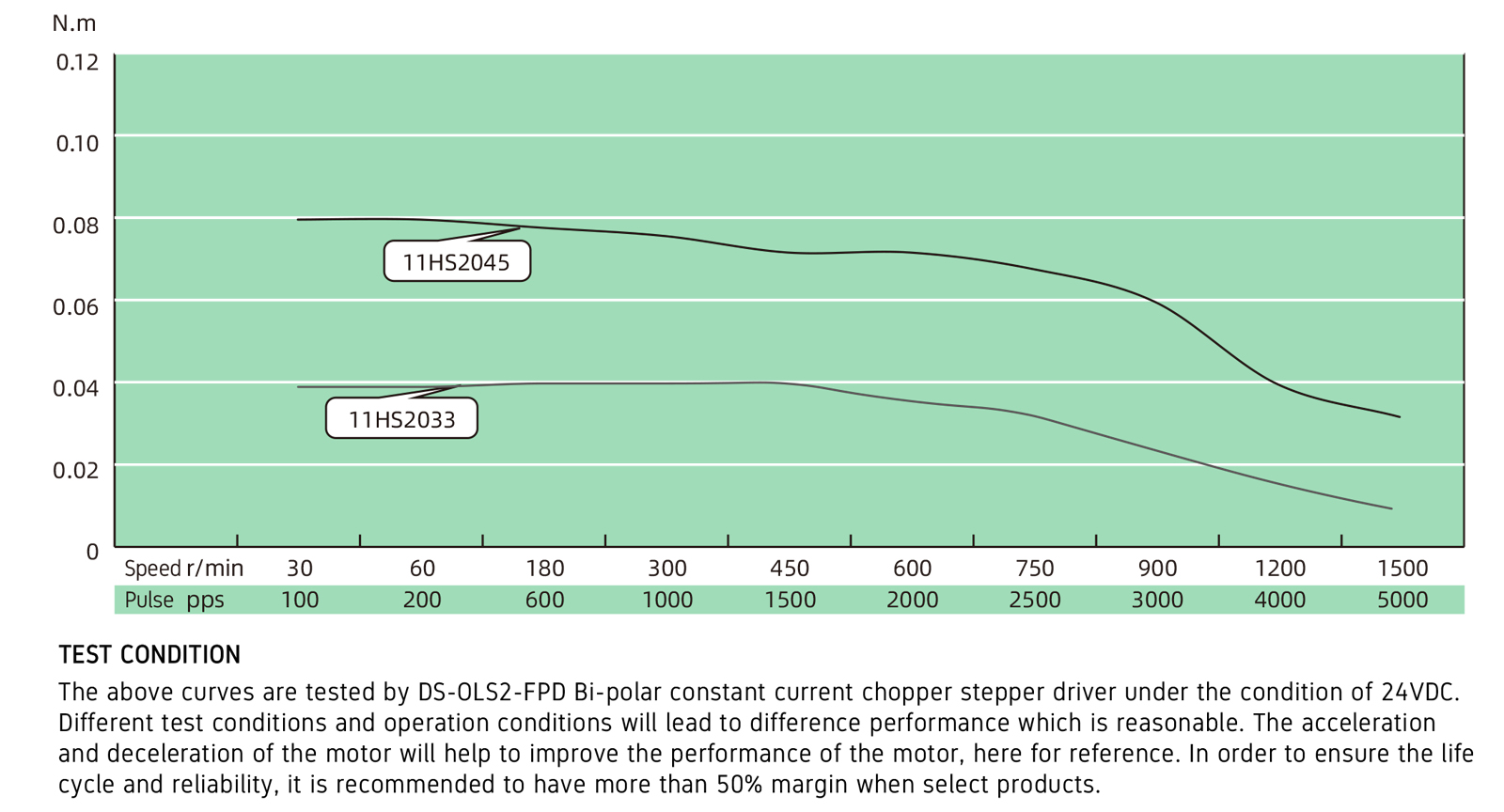

Torque Performance Curves
Options

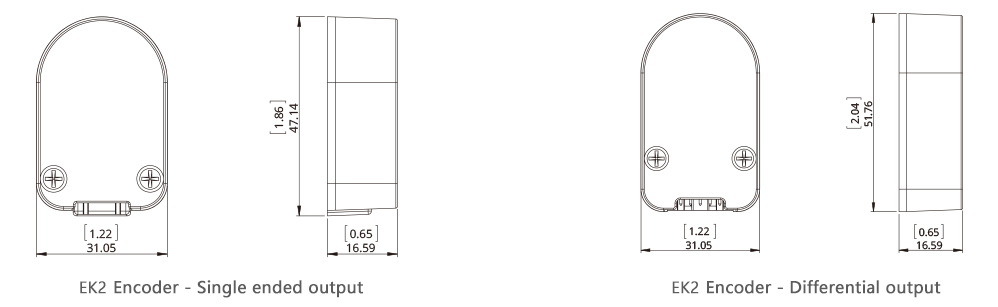

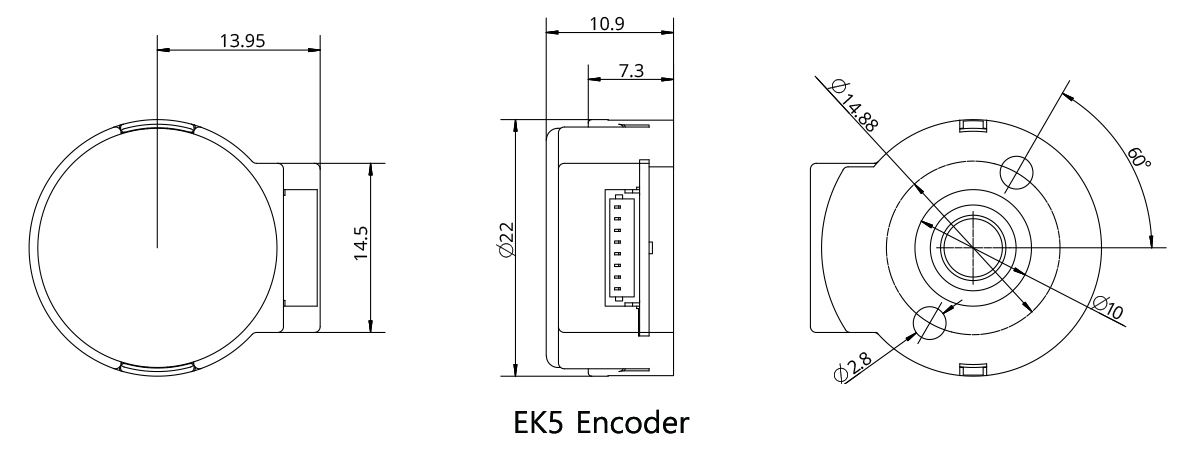

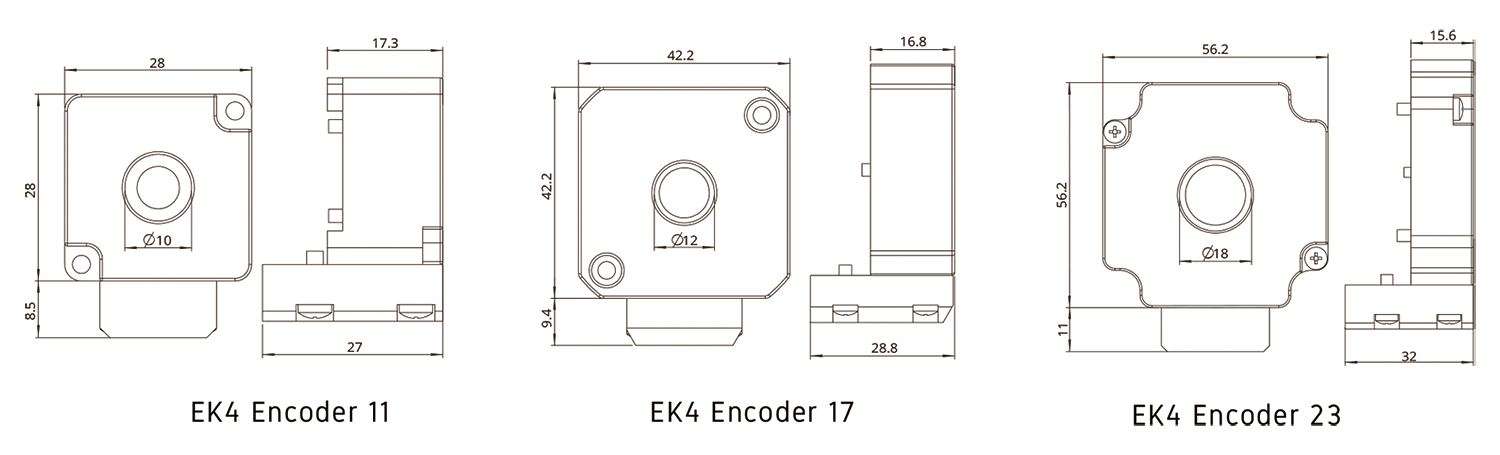

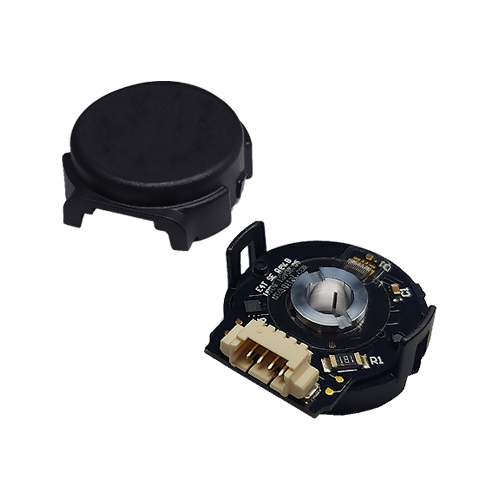

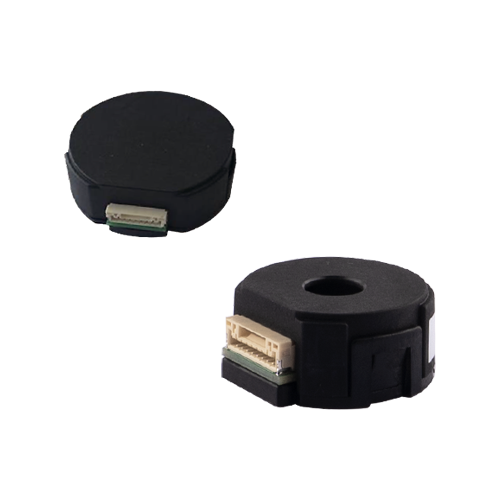

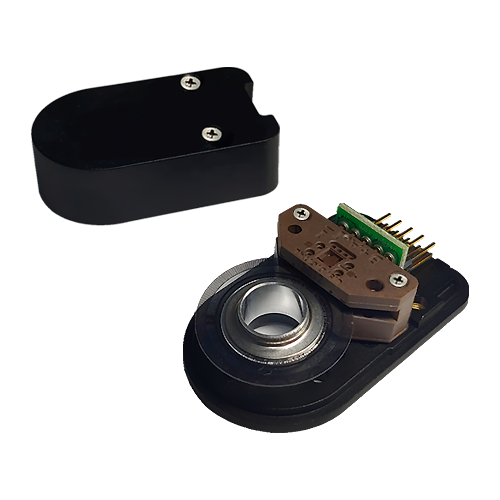

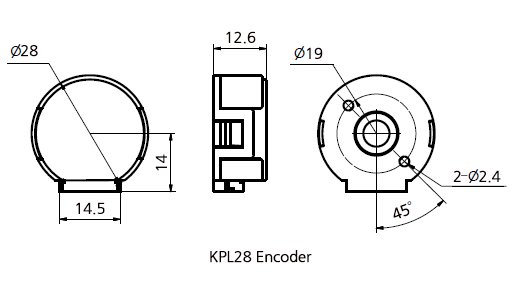

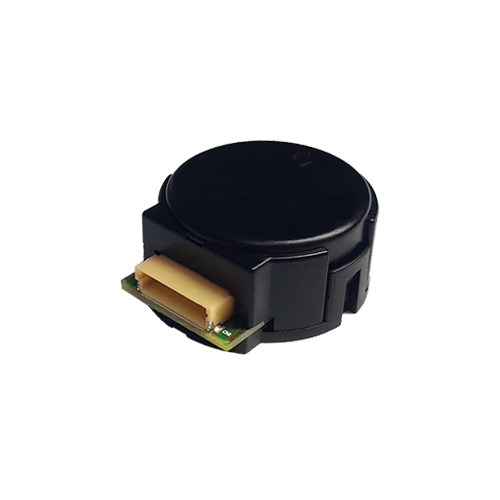

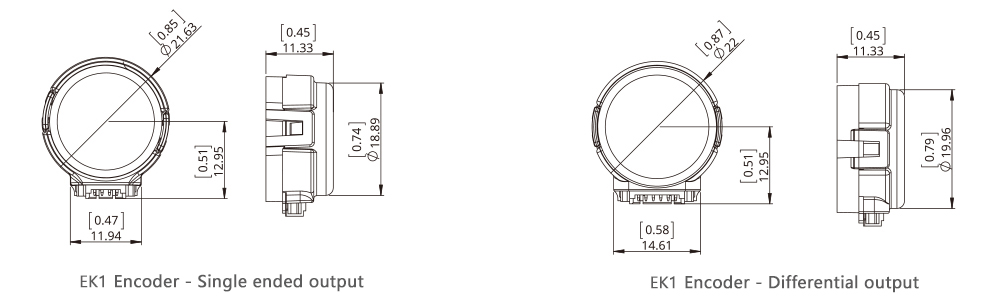

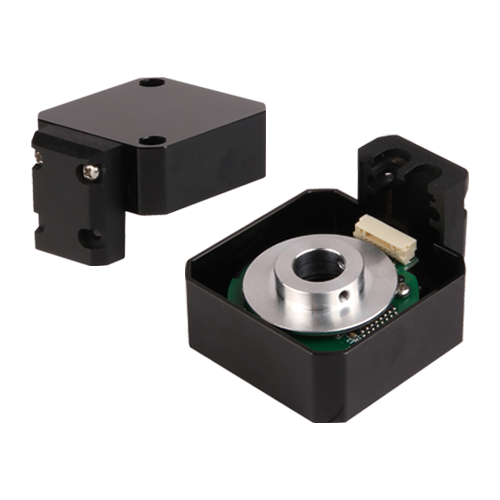

Encoder Option
| Resolution(CPR) | 100 | 108 | 120 | 125 | 128 | 200 | 250 | 256 | 300 | 360 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | B | C | D | E | F | G | H | I | J |
| Resolution(CPR) | 400 | 500 | 1000 | 512 | 720 | 800 |
| Single ended output | 10 | 11 | 12 | 13 | 14 | 15 |
| Differential output | K | L | M | N | O | P |
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | B | C | D | E | F | G | H | I | J |
| Resolution(CPR) | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 10 | 11 | 12 | ||||
| Differential output | K | L | M | N | O | P | Q |
| Resolution(CPR) | 625 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | - | - | - | - | - | - | - | - | - |
| Differential output | - | C | - | - | - | - | - | - |
| Resolution(CPR) | 360 | 500 | 512 | 1000 | 1024 | 2000 | 2048 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| Differential output | A | B | C | D | E | F | G |
* Among EK5 Encoder, EK5D option is only available for NEMA 11 (28mm) Hollow shaft stepper motor.
| Resolution(CPR) | 400 | 500 | 1000 | 2000 |
| Single ended output | 0 | 1 | 3 | 6 |
| Differential output | A | B | D | G |
