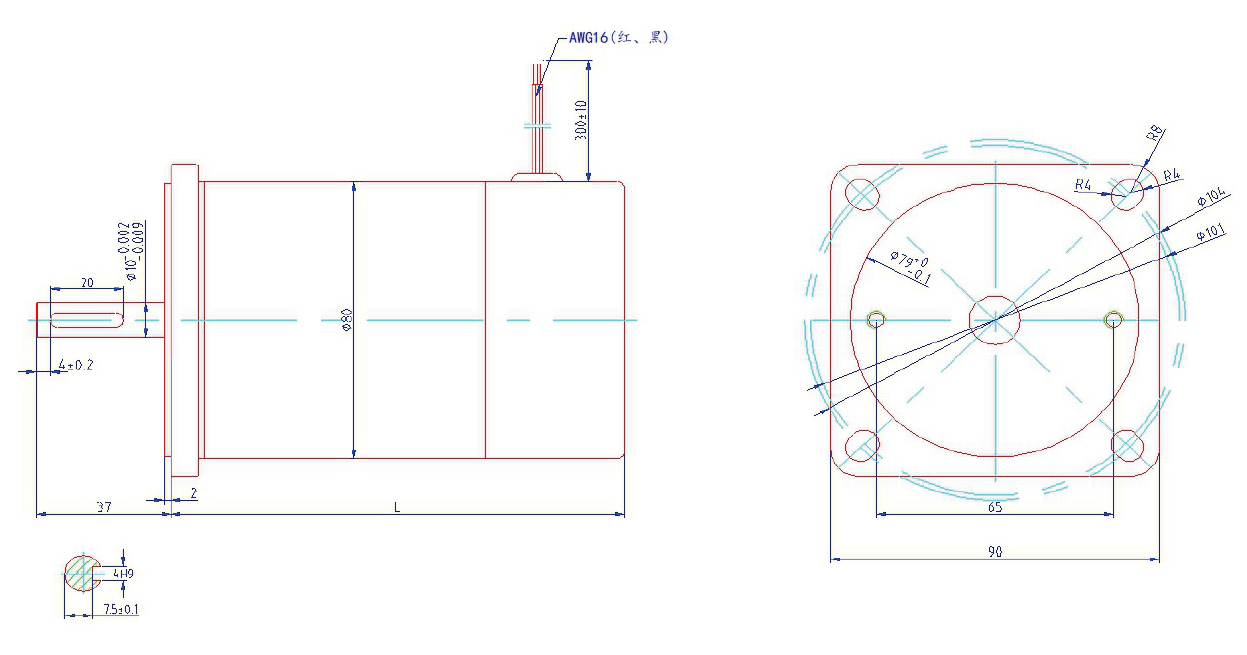

80ZYT Brush DC Motor
80ZYT Brush DC Motor
| Voltage V | Noload | Rated load | Torque Nm | Power W | Length mm | ||
Current A | Speed rpm | Current A | Speed rpm | |||||
80ZYT12624 | 24 | ≤1. 5 | 3500±8% | ≤9 | 3000±8% | 0.4 | 126 | 126 |
80ZYT14424 | 24 | ≤2 | 3500±8% | ≤12 | 3000±8% | 0.6 | 188 | 144 |
Note: the above is only representative products,
specific shape and performance parameters can be customized according to customer requirements.
