38mm OD Planetary Gearbox.Permissible Load Range: 1.0N.m~10N .m
Wire Diagram
U | V | W | Vcc | Ha | Hb | Hc | GND |
Red | Yellow | Black | Red | Blue | Green | White | Black |
20AWG UL1569 | 26AWG UL1569 | ||||||
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | No-load current A | Rated torque mN.m | Rated speed r/min | Rated current A | Rated power W | Reak torque mN.m | Peak current A |
36DMW58-2465 | 4 | 3 | 24 | 6500 | 0.45 | 70 | 5000 | 2.0 | 36 | 210 | 6 |
Brushless Gear Motor Technical Data
36DMW58-2465 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length(L) mm | 33.0 | 33.0 | 43.4 | 43.4 | 43.4 | 53.8 | 53.8 | 53.8 | 53.8 | 64.2 | 64.2 | 64.2 | 64.2 |
No-load speed r/min | 1752 | 1255 | 464 | 342 | 241 | 127 | 92 | 65 | 47 | 36 | 30 | 26 | 21 |
Rated speed r/min | 1368 | 965 | 357 | 363 | 185 | 98 | 70 | 50 | 36 | 28 | 23 | 20 | 16 |
Rated torque N.m | 0.23 | 0.33 | 0.79 | 1.1 | 1.5 | 2.6 | 3.6 | 5.1 | 7.1 | 8.2 | 9.9 | 10 | 10 |
Max. permissible load in a short time N.m | 2.5 | 2.5 | 10 | 10 | 10 | 20 | 20 | 20 | 20 | 25 | 25 | 25 | 25 |

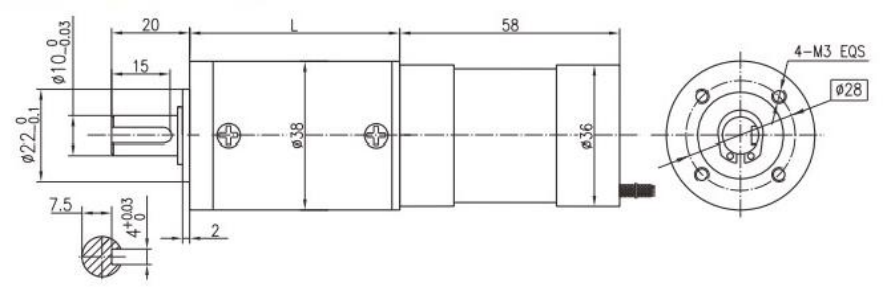

Dimensions
The gear modulus of '38JN80K'gearbox is 0.6, Enhanced gearbox.
